Vehicle Exploded View - APRILIA ETX 125 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

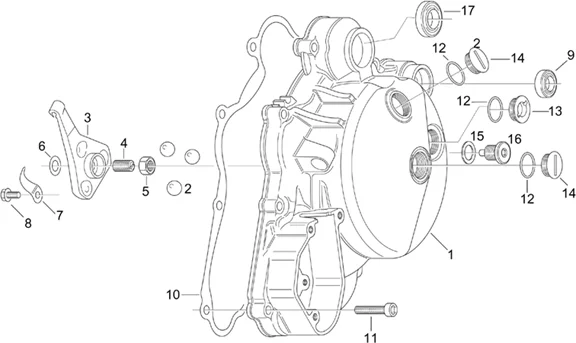

Moteur : 29.35 COUVERCLE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_29.35.PNG)
2 |
AP0232150 - BILLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/0/0/7/img/44007.jpg)
3 |
CLUTCH LEVER- "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, PEGASO, TUONO, CLASSIC -AP0259325- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/3/9/img/43739.jpg)
4 |
SCREW - M8X16 "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO, MX -AP0241793- More informationQuantity required : 1 |
||||||
|
5 |
AP0942674 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
AP0227945 - RACLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/6/8/3/img/43683.jpg)
7 |
AP0239907 - RESSORT A LAMES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/3/0/img/44530.jpg)
8 |
AP0841685 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
9 |
AP0250455 - JOINT SPI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/2/2/img/43822.jpg)
10 |
GASKET FOR CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 125 RS, CLASSIC, TUONO, RX, SX -AP0250206- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
11 |
AP0840880 - VIS More informationQuantity required : 14 |
||||||
|
12 |
AP0250890 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/1/0/img/43710.jpg)
13 |
AP0240820 - VIS TCHC NIV.HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/3/9/img/43839.jpg)
15 |
AP0250641 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
16 |
OIL DRAIN CAP MAGNETIC "PIAGGIO GENUINE PART" COMMON TO THE APRILIA RANGE -2R000498- More informationQuantity required : 1 |
||||||
|
17 |
AP0930725 - JOINT SPI More informationQuantity required : 1 |
