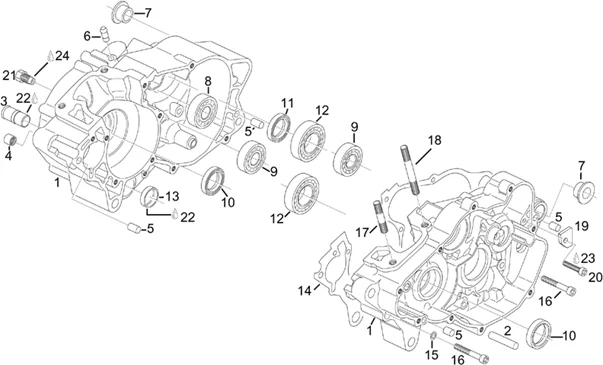

Moteur : 29.26 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_29.26.PNG)
1 |
AP0296199 - CARTER MOTORE CPL. More informationQuantity required : 1 |
||||||
|
2 |
AP0229380 - GOUPILLE More informationQuantity required : 1 |
||||||
|
3 |
AP0224260 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/5/9/img/38259.jpg)
4 |
2R000066 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
5 |
AP0632010 - GOUPILLE More informationQuantity required : 4 |
||||||
|
6 |
2R000040 - RACCORD More informationQuantity required : 1 |
||||||
|
7 |
AP0247555 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/2/6/img/43526.jpg)
8 |
BEARING 6302 "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, LEONARDO, PEGASO, RS, RX, SX, MX -AP0232291- More informationQuantity required : 1 |
||||||
|
9 |
AP0932032 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/0/7/img/43507.jpg)
10 |
SEAL RING GASKET- FOR CRANSHAFT (28X38X7) "PIAGGIO GENUINE PART" APRILIA 125 RS, SX, RX, AF1, CLASSIC, PEGASO -AP0230425- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/7/4/img/44574.jpg)
11 |
GASKET RING- GEARBOX (25X38X7) "PIAGGIO GENUINE PART" APRILIA 125 RS, MX, CLASSIC, PEGASO -AP0930675- More informationQuantity required : 1 |
||||||
|
12 |
AP0232765 - ROULEMENT More informationQuantity required : 2 |
||||||
|
13 |
AP0227325 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/4/3/img/44443.jpg)
14 |
HALF-CRANKCASE GASKET "PIAGGIO GENUINE PART" APRILIA 125 RS, CLASSIC, TUONO, MX, SX, RX -AP0650131 More informationQuantity required : 1 |
||||||
|
15 |
AP0230415 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
16 |
AP0241821 - VIS More informationQuantity required : 10 |
||||||
|
17 |
AP0241381 - VIS SANS T?TE More informationQuantity required : 2 |
||||||
|
18 |
AP0940786 - VIS SANS T?TE More informationQuantity required : 2 |
||||||
|
19 |
Arrêtoir encl. alum |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
20 |
AP0840880 - VIS More informationQuantity required : 1 |
||||||
|
21 |
AP0640190 - VIS More informationQuantity required : 1 |
||||||
|
22 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
||||||
|
23 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
||||||
|
24 |
AP0297386 - SILASTIC 732 RTV More informationQuantity required : 1 |
