Vehicle Exploded View - APRILIA ETX 125 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

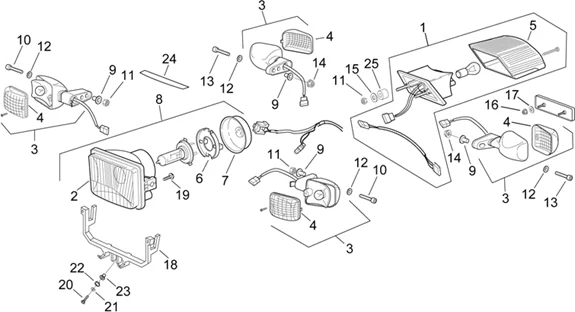

Chassis : 28.22 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_28.22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/5/9/img/45859.jpg)
1 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, MX, 50 PEGASO, TUAREG -AP8112531- More informationQuantity required : 1 |
||||||
3 |
AP8112922 - CLIGNOTANT ARRIERE More informationQuantity required : 4 |
||||||
|
4 |
AP8112756 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
|
5 |
AP8112633 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
8 |
AP8112662 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
8 |
AP8124482 - PHARE AVANT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
9 |
AP8121795 - DOUILLE EN T More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
10 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
11 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
||||||
|
12 |
AP8150178 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
13 |
AP8150165 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
14 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
15 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
16 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
17 |
AP8150011 - RONDELLE More informationQuantity required : 2 |
||||||
|
19 |
AP8152114 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/4/8/6/img/164486.JPG)
21 |
AP8120591 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
25 |
AP8121718 - DOUILLE More informationQuantity required : 2 |
