Vehicle Exploded View - APRILIA ETX 125 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

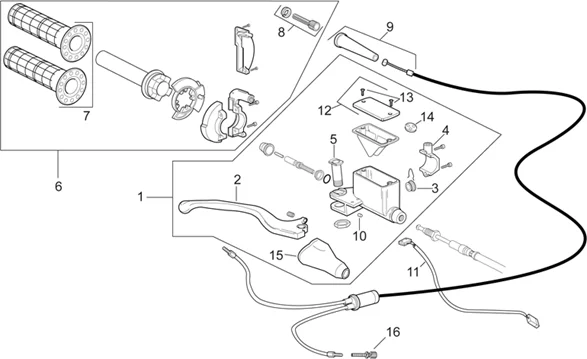

Chassis : 28.12 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_28.12.PNG)
2 |
AP8118416 - LEVIER FREIN AVANT; More informationQuantity required : 1 |
||||||
|
3 |
AP8113063 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
4 |
AP8113203 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
5 |
AP8113058 - PIVOT LEVIER FREIN More informationQuantity required : 1 |
||||||
|
7 |
AP8118462 - COUPLE MANETTES, NOIR; More informationQuantity required : 1 |
||||||
|
8 |
AP8114371 - REGLAGE CABLE ACCELERATEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/3/0/img/46130.jpg)
9 |
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 125 MX 2004>2006, ETX 1998> -AP8114361- More informationQuantity required : 1 |
||||||
|
10 |
AP8113522 - TAMPON LEVIER FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/5/4/3/img/47543.jpg)
11 |
STOP LIGHT SWITCH+WIRING "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, MX, 250 RS, 650 PEGASO -AP8124597- More informationQuantity required : 1 |
||||||
|
12 |
AP8113672 - COUVERCLE POMPE More informationQuantity required : 1 |
||||||
|
14 |
AP8113349 - DISP. ANTI-EMULSION More informationQuantity required : 1 |
||||||
|
15 |
GU27663615 - CAPUCHON More informationQuantity required : 1 |
||||||
|
16 |
AP8114272 - REGLAGE CABLE ACCELERAT. More informationQuantity required : 1 |
