Vehicle Exploded View - APRILIA ETX 125 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

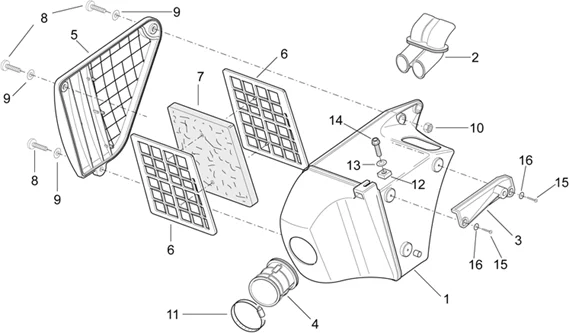

Chassis : 28.15 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_28.15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/4/img/46634.JPG)
2 |
AP8120748 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
3 |
AP8131680 - PLAQUE BATTERIE; More informationQuantity required : 1 |
||||||
|
4 |
AP8120654 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/2/img/71162.jpg)
7 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RX, SX 1995>1998, PEGASO 1991>1994 -AP8101851- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
9 |
AP8150179 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
10 |
AP8150026 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/9/img/71389.jpg)
11 |
AP8120246 - COLLIER More informationQuantity required : 1 |
||||||
|
13 |
AP8150182 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
15 |
AP8152114 - VIS More informationQuantity required : 2 |
||||||
|
16 |
AP8150233 - RONDELLE More informationQuantity required : 2 |
