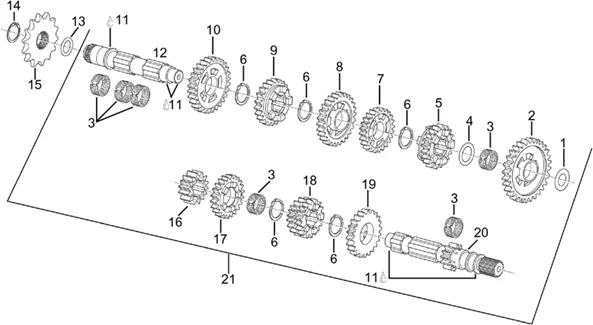

Moteur : 29.32 TRANSMISS VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_29.32.PNG)
1 |
AP0227430 - RACLEUR More informationQuantity required : 1 |
||||||
|
2 |
AP0634065 - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/3/8/img/43538.jpg)
3 |
ROLLER BEARING FOR CLUTCH "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO -AP0259053- More informationQuantity required : 6 |
||||||
|
4 |
AP0244100 - RACLEUR More informationQuantity required : 1 |
||||||
|
5 |
AP0634130 - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/8/1/img/43781.jpg)
6 |
CIRCLIPS FOR GEARBOX SHEFT "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, MX, CLASSIC, TUONO -AP0245730- More informationQuantity required : 5 |
||||||
|
7 |
AP0234858 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
8 |
AP0234984 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
9 |
AP0634110 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
10 |
AP0234968 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
11 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
||||||
|
12 |
AP0220280 - ARBRE SECONDAIRE More informationQuantity required : 1 |
||||||
|
13 |
AP0430460 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/7/8/img/43778.jpg)
14 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO APRILIA 50-125 CC -AP0245650- More informationQuantity required : 1 |
||||||
|
15 |
AP0236061 - PIGNON More informationQuantity required : 1 |
||||||
|
15 |
AP0236062 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/9/6/img/43596.jpg)
15 |
GEARBOX OUPUT SPROCKET 16 TEETH "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASSO -AP0236063- More informationQuantity required : 1 |
||||||
|
15 |
AP0236425 - PIGNON Z=16 More informationQuantity required : 1 |
||||||
|
16 |
AP0634085 - ENGR. 2E SUR PRIM. More informationQuantity required : 1 |
||||||
|
17 |
AP0634100 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
18 |
AP0634095 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
19 |
AP0634120 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
20 |
AP0220300 - ARBRE PRIMAIRE More informationQuantity required : 1 |
||||||
|
21 |
AP0281211 - BO?TE DE VITESSES CPL. More informationQuantity required : 1 |
