Vehicle Exploded View - APRILIA ETX 125 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

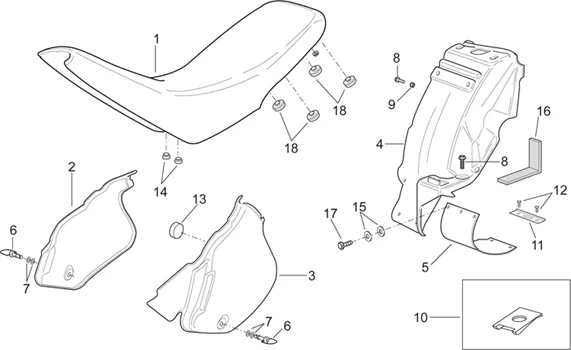

Chassis : 28.09 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_28.09.PNG)
4 |
AP8126467 - BAVOLET AR; More informationQuantity required : 1 |
||||||
|
6 |
AP8121704 - PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
7 |
FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
9 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
11 |
AP8132802 - PLAQUE PROT.AMORTIS.; More informationQuantity required : 1 |
||||||
|
12 |
AP8152088 - VIS T TARAUD More informationQuantity required : 2 |
||||||
|
14 |
AP8144156 - CAOUTCHOUC; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
15 |
AP8150011 - RONDELLE More informationQuantity required : 4 |
||||||
|
16 |
AP8117041 - EPONGE ADHESIVE; More informationQuantity required : 1 |
||||||
|
17 |
AP8102029 - RIVET A DECLIC More informationQuantity required : 2 |
||||||
|
18 |
AP8144155 - CAOUTCHOUC; More informationQuantity required : 4 |
