Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

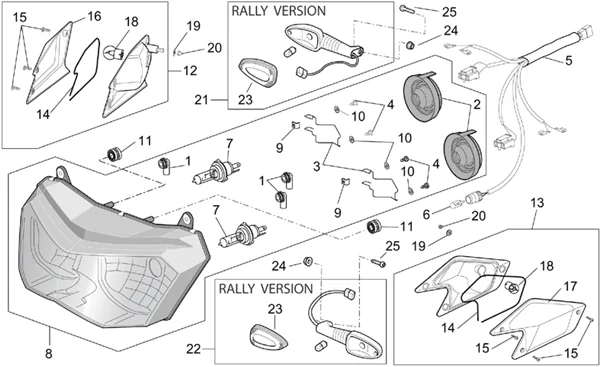

Chassis : 28.42 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/293/ETV_1000_Capo_Nord_2001-2003_28.42.PNG)
1 |
AP8127160 - EMBOUT CAOUT.ANTICOND. More informationQuantity required : 3 |
||||||
|
2 |
AP8127161 - COIFFE PHARE More informationQuantity required : 2 |
||||||
|
3 |
AP8127162 - RESSORT More informationQuantity required : 2 |
||||||
|
4 |
AP8127163 - VIS More informationQuantity required : 4 |
||||||
|
5 |
AP8124580 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
|
5 |
AP8127525 - CABLAGGIO FANALE ANTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
7 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 2 |
||||||
|
8 |
AP8124587 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
8 |
AP8127111 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
9 |
AP8127165 - PLAQUETTE BUTEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
11 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/8/2/img/48082.jpg)
12 |
AP8127317 - CLIGNOTANT AV DROITE; More informationQuantity required : 1 |
||||||
|
13 |
AP8127318 - CLIGNOTANT AVANT GAUCHE; More informationQuantity required : 1 |
||||||
|
14 |
AP8127166 - JOINT More informationQuantity required : 2 |
||||||
|
15 |
AP8127167 - VIS TARAUD More informationQuantity required : 6 |
||||||
|
16 |
AP8127362 - GLACE CLIGN. AV D; More informationQuantity required : 1 |
||||||
|
17 |
AP8127363 - GLACE CLIGN. AV G; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
19 |
AP8150011 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
20 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/4/img/71604.jpg)
21 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817514- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/5/img/71605.jpg)
22 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817515- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/6/img/71606.jpg)
23 |
LENS FOR FLASHER "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP8127552- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
24 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
25 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 2 |
