Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

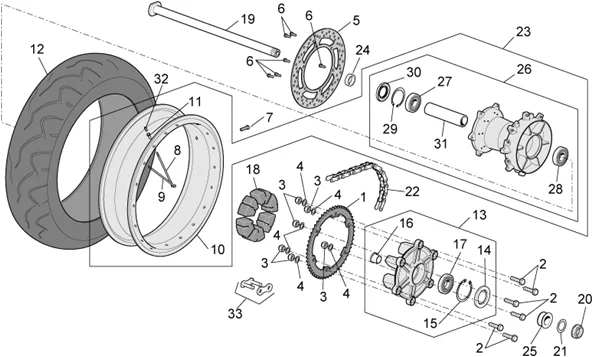

Chassis : 28.39 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/293/ETV_1000_Capo_Nord_2001-2003_28.39.PNG)
1 |
AP8107129 - COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/5/img/71965.jpg)
2 |
AP8152318 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
3 |
AP8152242 - ECROU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.JPG)
4 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 6 |
||||||
|
5 |
AP8113808 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
7 |
TUBELESS TYRE VALVE "PIAGGIO GENUINE PART" COMMON FOR APRILIA /MOTO-GUZZI MOTORBIKES -AP8101744- More informationQuantity required : 1 |
||||||
|
8 |
AP8108787 - RAYON More informationQuantity required : 18 |
||||||
|
9 |
AP8108805 - RAYON More informationQuantity required : 18 |
||||||
|
10 |
AP8108788 - JANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/7/9/5/img/45795.jpg)
11 |
NUT - FOR SPOKE "PIAGGIO GENUINE PART" APRILIA 1000-1200 CAPONORD -AP8108953- More informationQuantity required : 36 |
||||||
|
13 |
AP8125794 - PORTE-COURONNE CPL. More informationQuantity required : 1 |
||||||
|
14 |
AP8125878 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
15 |
AP8125879 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/9/7/img/47797.jpg)
16 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD -AP8125880- More informationQuantity required : 1 |
||||||
|
17 |
AP8125881 - ROULEMENT More informationQuantity required : 1 |
||||||
|
18 |
AP8125798 - CAOUTCHOUC ELASTIQUE More informationQuantity required : 6 |
||||||
|
19 |
AP8125796 - AXE DE ROUE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
20 |
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.JPG)
21 |
AP8125687 - RONDELLE AXE ROUE AR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/1/9/9/img/40199.jpg)
22 |
CHAIN WITH CONNECTING LINK "PIAGGIO GENUINE PART" APRILIA 750-900 DORSODURO, 1200 CAPONORD -856805- More informationQuantity required : 1 |
||||||
|
23 |
AP8125877 - ROUE AR CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/6/3/img/47763.jpg)
24 |
AP8125799 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
25 |
AP8125800 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
26 |
AP8125907 - MOZZO POSTERIORE COMPLET More informationQuantity required : 1 |
||||||
|
27 |
AP8125872 - ROULEMENT More informationQuantity required : 1 |
||||||
|
28 |
AP8125873 - ROULEMENT More informationQuantity required : 1 |
||||||
|
29 |
AP8125874 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 1 |
||||||
|
30 |
AP8125875 - JOINT SPI More informationQuantity required : 1 |
||||||
|
31 |
AP8125876 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/9/8/img/50898.JPG)
32 |
AP8150491 - GOUJON More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/6/7/img/40667.JPG)
33 |
859754 - MAILLON DE JONCTION More informationQuantity required : 1 |
