Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

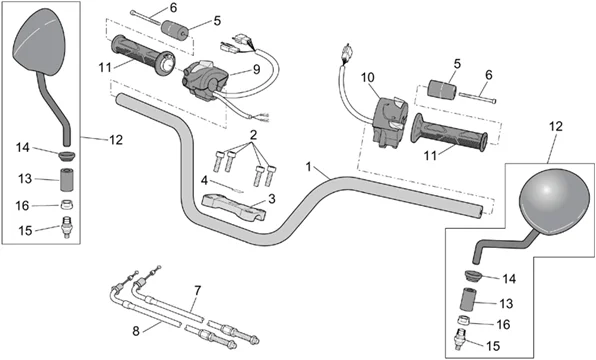

Chassis : 28.22 GUIDON STANDARD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/293/ETV_1000_Capo_Nord_2001-2003_28.22.PNG)
1 |
AP8118504 - GUIDON GRIS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/0/img/71830.jpg)
2 |
AP8150170 - VIS More informationQuantity required : 4 |
||||||
|
3 |
HANDLEBAR HOLDER "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007 -AP8163218- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
4 |
DECAL- "APRILIA" "PIAGGIO GENUINE PART" APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2 -AP8157770- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/9/img/71229.JPG)
5 |
AP8104572 - MASSE ANTI VIBR=8102579 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/5/img/71865.jpg)
6 |
AP8150342 - VIS More informationQuantity required : 2 |
||||||
|
7 |
AP8114375 - CABLE OUVERTURE GAZ; More informationQuantity required : 1 |
||||||
|
8 |
AP8114376 - CABLE FERMETURE GAZ; More informationQuantity required : 1 |
||||||
|
9 |
AP8127110 - DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
|
10 |
AP8124984 - DEVIATEUR FEUX GCHE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/6/9/img/46369.jpg)
11 |
THROTTLE HANDLE+ HAND GRIPS "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 650 PEGASO, 1000 CAPONORD, FUTURA -AP8118619- More informationQuantity required : 1 |
||||||
|
12 |
MIRROR- RIGHT/LEFT "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2003 -CM178902- More informationQuantity required : 2 |
||||||
|
13 |
AP8106911 - CAOUTCHOUC MIROIR More informationQuantity required : 2 |
||||||
|
14 |
AP8201843 - PROTECTION BORNE More informationQuantity required : 2 |
||||||
|
15 |
AP8201842 - BORNE FIXATION MIROIR More informationQuantity required : 2 |
||||||
|
16 |
AP8201856 - BAGUE POUR BORNE; More informationQuantity required : 2 |
