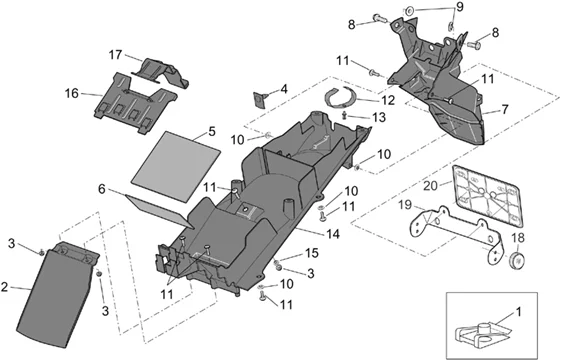

Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2001-2003 APRILIA

Chassis : 28.20 DESSOUS SELLE
Dessous selle
Search
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

1
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 2
AP8126717 - PROTECTION AMORTISSEUR;

2
P2R reference P2R reference 47876
Maker reference Maker reference AP8126717

AP8126717 - PROTECTION AMORTISSEUR;

More information

Quantity required : 1
AP8152299 - ECROU AUTOBLOQU.

3
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

AP8152299 - ECROU AUTOBLOQU.

More information

Quantity required : 1
AP8149296 - PIVOT FIXATION;

4
P2R reference P2R reference 50605
Maker reference Maker reference AP8149296

AP8149296 - PIVOT FIXATION;

More information

Quantity required : 1
AP8144288 - EMBOUT APPUI BATTERIE LAT.

5
P2R reference P2R reference 49684
Maker reference Maker reference AP8144288

AP8144288 - EMBOUT APPUI BATTERIE LAT.

More information

Quantity required : 1
AP8144045 - CAOUTCHOUC POSE-BATTERIE

6
P2R reference P2R reference 49587
Maker reference Maker reference AP8144045

AP8144045 - CAOUTCHOUC POSE-BATTERIE

More information

Quantity required : 1
SCREW - (8x20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286-

8
P2R reference P2R reference 71948
Maker reference Maker reference AP8152286

SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286-

More information

Quantity required : 2
AP8120508 - "DOUILLE EN ""T"""

9
P2R reference P2R reference 71400
Maker reference Maker reference AP8120508

AP8120508 - "DOUILLE EN ""T"""

More information

Quantity required : 2
AP8121032 - DOUILLE

10
P2R reference P2R reference 71429
Maker reference Maker reference AP8121032

AP8121032 - DOUILLE

More information

Quantity required : 8
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

11
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

More information

Quantity required : 11
AP8120317 - RIVET EN PLASTIQUE NOIR

13
P2R reference P2R reference 71392
Maker reference Maker reference AP8120317

AP8120317 - RIVET EN PLASTIQUE NOIR

More information

Quantity required : 1
AP8139799 - FERM. INF.PORT-SELLE NOIR;

14
P2R reference P2R reference 49414
Maker reference Maker reference AP8139799

AP8139799 - FERM. INF.PORT-SELLE NOIR;

More information

Quantity required : 1
AP8121991 - DOUILLE;

15
P2R reference P2R reference 46976
Maker reference Maker reference AP8121991

AP8121991 - DOUILLE;

More information

Quantity required : 1
AP8158036 - COUVERCLE BATTERIE;

16
P2R reference P2R reference 51478
Maker reference Maker reference AP8158036

AP8158036 - COUVERCLE BATTERIE;

More information

Quantity required : 1
AP8158035 - BRIDE;

17
P2R reference P2R reference 51477
Maker reference Maker reference AP8158035

AP8158035 - BRIDE;

More information

Quantity required : 1
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164-

18
P2R reference P2R reference 72325
Maker reference Maker reference AP8224164

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164-

More information

Quantity required : 2
AP8134846 - AR.SUPPORT CATADIOPTRE;

19
P2R reference P2R reference 49050
Maker reference Maker reference AP8134846

AP8134846 - AR.SUPPORT CATADIOPTRE;

More information

Quantity required : 1
NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI + MAXISCOOTER APRILIA -AP8149034-

20
P2R reference P2R reference 71801
Maker reference Maker reference AP8149034

NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI + MAXISCOOTER APRILIA -AP8149034-

More information

Quantity required : 1
