Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

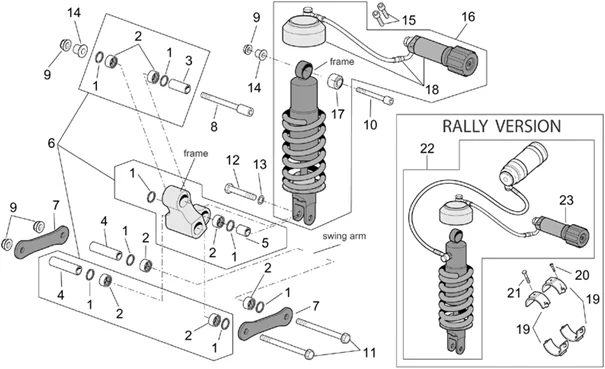

Chassis : 28.09 BIELLETTE ET AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/293/ETV_1000_Capo_Nord_2001-2003_28.09.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/0/img/71270.JPG)
1 |
AP8110068 - JOINT SPI More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/9/img/71269.JPG)
2 |
AP8110066 - CAGE A ROULEAUX More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/9/img/71719.JPG)
3 |
AP8135924 - AXE BIELLE DOUBLE; More informationQuantity required : 1 |
||||||
4 |
AP8121315 - AXE BIELLE DOUBLE; More informationQuantity required : 2 |
||||||
|
5 |
SUSPENSION LINK ROD AXLE "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, NORGE, STELVIO, GRISO, BELLAGIO/APRILIA PEGASO, CAPONORD -AP81356085- More informationQuantity required : 1 |
||||||
|
6 |
AP8146192 - DOUBLE BIELLETTE; More informationQuantity required : 1 |
||||||
|
7 |
AP8146758 - BIELLA SINGOLA More informationQuantity required : 2 |
||||||
|
7 |
AP8146193 - BIELLE SIMPLE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/9/img/71979.jpg)
8 |
REAR ABSORBER LINKAGE ROD "PIAGGIO GENUINE PARTS" COMMON TO MOTO-GUZZI RANGE -AP8152397- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
9 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
|
10 |
AP8150458 - VIS More informationQuantity required : 1 |
||||||
|
11 |
AP8152396 - VIS More informationQuantity required : 2 |
||||||
|
12 |
AP8152147 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.JPG)
13 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/9/img/71439.jpg)
14 |
AP8121155 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
15 |
AP8150165 - VIS More informationQuantity required : 2 |
||||||
|
16 |
AP8163378 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
|
17 |
AP8144466 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
18 |
AP8163084 - PRECHARGE More informationQuantity required : 1 |
||||||
|
19 |
AP8134962 - SUPPORTO VASCHETTA AMMORTI. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
20 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
21 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
||||||
|
22 |
AP8163244 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
|
23 |
AP8163084 - PRECHARGE More informationQuantity required : 1 |
