Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2001-2003 APRILIA

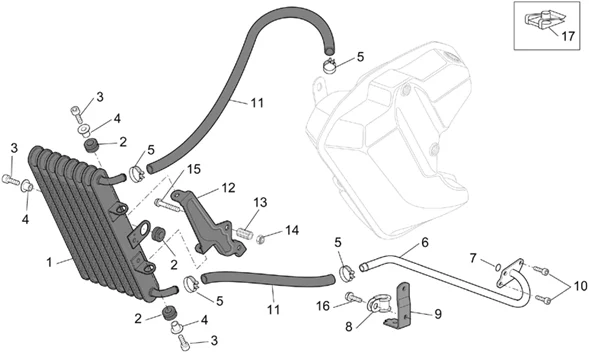

Chassis : 28.29 RADIATEUR HUILE
Radiateur huile
Search
AP8102918 - RADIATEUR HUILE CPL.

1
P2R reference P2R reference 45256
Maker reference Maker reference AP8102918

AP8102918 - RADIATEUR HUILE CPL.

More information

Quantity required : 1
AP8120030 - CAOUTCHOUC

2
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

AP8120030 - CAOUTCHOUC

More information

Quantity required : 3
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

3
P2R reference P2R reference 71815
Maker reference Maker reference AP8150044

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

More information

Quantity required : 3
AP8221023 - "DOUILLE EN ""T"" *"

4
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

AP8221023 - "DOUILLE EN ""T"" *"

More information

Quantity required : 3
AP8102349 - COLLIER CLIC, BLANC

5
P2R reference P2R reference 71172
Maker reference Maker reference AP8102349

AP8102349 - COLLIER CLIC, BLANC

More information

Quantity required : 4
AP8106388 - TUYAU HUILE

6
P2R reference P2R reference 45525
Maker reference Maker reference AP8106388

AP8106388 - TUYAU HUILE

More information

Quantity required : 1
AP8144008 - JOINT TORIQUE

7
P2R reference P2R reference 49575
Maker reference Maker reference AP8144008

AP8144008 - JOINT TORIQUE

More information

Quantity required : 1
OIL HOSE CLAMP "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO, FUTURA, FALCO, CAPONORD -AP8102731-

8
P2R reference P2R reference 45214
Maker reference Maker reference AP8102731

OIL HOSE CLAMP "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO, FUTURA, FALCO, CAPONORD -AP8102731-

More information

Quantity required : 1
AP8134745 - PLAQUETTE;

9
P2R reference P2R reference 49015
Maker reference Maker reference AP8134745

AP8134745 - PLAQUETTE;

More information

Quantity required : 1
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137-

10
P2R reference P2R reference 71824
Maker reference Maker reference AP8150137

SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137-

More information

Quantity required : 2
PIPE -2B006560-

11
P2R reference P2R reference 45526
Maker reference Maker reference AP8106389

PIPE -2B006560-

More information

Quantity required : 1
AP8134681 - PLAQUE;

12
P2R reference P2R reference 48999
Maker reference Maker reference AP8134681

AP8134681 - PLAQUE;

More information

Quantity required : 1
AP8121313 - DOUILLE CONIQUE;

13
P2R reference P2R reference 46781
Maker reference Maker reference AP8121313

AP8121313 - DOUILLE CONIQUE;

More information

Quantity required : 1
AP8150430 - ECROU AUTOFR. BAS

14
P2R reference P2R reference 71882
Maker reference Maker reference AP8150430

AP8150430 - ECROU AUTOFR. BAS

More information

Quantity required : 1
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281-

15
P2R reference P2R reference 71944
Maker reference Maker reference AP8152281

SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281-

More information

Quantity required : 1
AP8152279 - VIS BRIDE

16
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

AP8152279 - VIS BRIDE

More information

Quantity required : 1
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

17
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1
