Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2001-2003 APRILIA

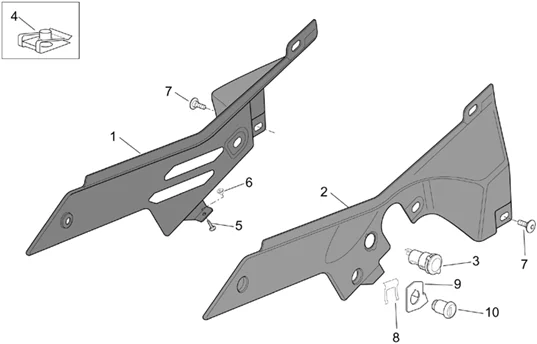

Chassis : 28.16 CARROSSERIE CENTRALE
Carrosserie centrale
Search
AP8168327 - AILE D;

1
P2R reference P2R reference 53114
Maker reference Maker reference AP8168327

AP8168327 - AILE D;

More information

Quantity required : 1
AP8168922 - CHIUSURA FIANCATINA DX V.

1
P2R reference P2R reference 53464
Maker reference Maker reference AP8168922

AP8168922 - CHIUSURA FIANCATINA DX V.

More information

Quantity required : 1
AP8139805 - FLANC G.BLEU;

2
P2R reference P2R reference 49416
Maker reference Maker reference AP8139805

AP8139805 - FLANC G.BLEU;

More information

Quantity required : 1
AP8158054 - FLANC G, ROUGE;

2
P2R reference P2R reference 51485
Maker reference Maker reference AP8158054

AP8158054 - FLANC G, ROUGE;

More information

Quantity required : 1
B063212 - PRISE

3
P2R reference P2R reference 72858
Maker reference Maker reference B063212

B063212 - PRISE

More information

Quantity required : 1
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

4
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 2
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

5
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

More information

Quantity required : 2
AP8121032 - DOUILLE

6
P2R reference P2R reference 71429
Maker reference Maker reference AP8121032

AP8121032 - DOUILLE

More information

Quantity required : 2
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

7
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

More information

Quantity required : 6
MOUNTING CLIP FOR BOOT LOCK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA / MOTO-GUZZI -AP8121420-

8
P2R reference P2R reference 71463
Maker reference Maker reference AP8121420

MOUNTING CLIP FOR BOOT LOCK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA / MOTO-GUZZI -AP8121420-

More information

Quantity required : 1
AP8134618 - PLAQUE SUPPORT CABLE;

9
P2R reference P2R reference 71704
Maker reference Maker reference AP8134618

AP8134618 - PLAQUE SUPPORT CABLE;

More information

Quantity required : 1
AP8104154 - SERRURE SELLE

10
P2R reference P2R reference 45315
Maker reference Maker reference AP8104154

AP8104154 - SERRURE SELLE

More information

Quantity required : 1
