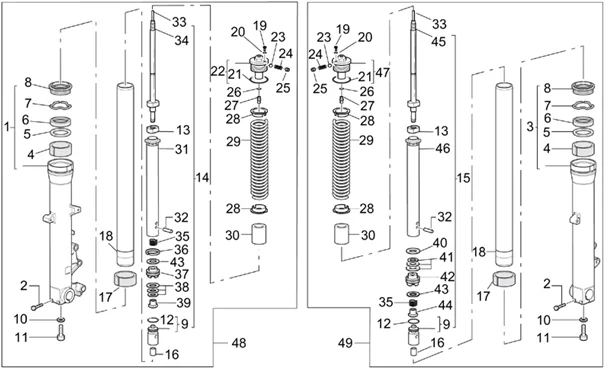

Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2001-2003

	P2R reference	52112
	Maker reference	AP8163082

AP8163082 - FOURREAU D;

	P2R reference	52103
	Maker reference	AP8163066

AP8163066 - VIS BRIDE

	P2R reference	52104
	Maker reference	AP8163067

AP8163067 - FOURREAU G

	P2R reference	72017
	Maker reference	AP8163068

AP8163068 - DOUILLE;

	P2R reference	72018
	Maker reference	AP8163069

AP8163069 - BAGUE;

	P2R reference	72019
	Maker reference	AP8163070

AP8163070 - JOINT SPI;

	P2R reference	72020
	Maker reference	AP8163071

AP8163071 - BAGUE DE BUTEE;

	P2R reference	72021
	Maker reference	AP8163072

AP8163072 - PARE-POUSSIERE;

	P2R reference
	Maker reference	AP8163366

Tampon de fond complete

	P2R reference	71512
	Maker reference	AP8123206

SEAL WASHER ON FORK DRAIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8123206

	P2R reference
	Maker reference	AP8123561

VITE FISS.POMPANTE 2 DIAMETRI

	P2R reference
	Maker reference	AP8163355

Joint torique

	P2R reference	157176
	Maker reference	AP8163351

AP8163351 - DADO M12X1,25 CH.19

	P2R reference
	Maker reference	AP8163368

Elém.pompage cpl D

	P2R reference	52224
	Maker reference	AP8163367

AP8163367 - POMPANTE CPL.SX

	P2R reference
	Maker reference	AP8163359

Goupille référence

	P2R reference	52106
	Maker reference	AP8163074

AP8163074 - DOUILLE;

	P2R reference
	Maker reference	AP8163365

Tige

	P2R reference	72066
	Maker reference	AP8163369

AP8163369 - VITE CPL.TCIC M4X6

	P2R reference
	Maker reference	AP8163185

Joint torique

	P2R reference	52113
	Maker reference	AP8163083

AP8163083 - JOINT TORIQUE;

	P2R reference	52222
	Maker reference	AP8163363

AP8163363 - TAPPO DX

	P2R reference
	Maker reference	AP8163354

SFERA D.3

	P2R reference
	Maker reference	AP8163339

Ressort

	P2R reference	164998
	Maker reference	AP8150497

AP8150497 - GOUJON

	P2R reference	165002
	Maker reference	AP8163143

AP8163143 - JOINT TORIQUE

	P2R reference	72067
	Maker reference	AP8163370

AP8163370 - GRANO + OR

	P2R reference
	Maker reference	AP8163361

ANELLO D.50

	P2R reference	52215
	Maker reference	AP8163341

AP8163341 - MOLLA

	P2R reference	52280
	Maker reference	AP8163475

AP8163475 - TUBO

	P2R reference
	Maker reference	AP8163348

RH Flasque droite

	P2R reference	52220
	Maker reference	AP8163358

AP8163358 - SPINA 8X30

	P2R reference
	Maker reference	AP8163362

Tige

	P2R reference	52214
	Maker reference	AP8163340

AP8163340 - MOLLA

	P2R reference	72065
	Maker reference	AP8163353

AP8163353 - SEGMENTO PISTONE D.26

	P2R reference
	Maker reference	AP8163357

Piston d.extension

	P2R reference
	Maker reference	AP8163342

SPESSORE 23x8.1x0.2

	P2R reference
	Maker reference	AP8163343

SPESSORE 20x8.1x0.2

	P2R reference
	Maker reference	AP8163344

SPESSORE 22x8.1x0.2

	P2R reference	52217
	Maker reference	AP8163346

AP8163346 - SPESSORE 21X8.1X0.2

	P2R reference	72064
	Maker reference	AP8163350

AP8163350 - DADO M6X1 H=6

	P2R reference	52221
	Maker reference	AP8163360

AP8163360 - SCODELLINO

	P2R reference
	Maker reference	AP8163342

SPESSORE 23x8.1x0.2

	P2R reference
	Maker reference	AP8163344

SPESSORE 22x8.1x0.2

	P2R reference	52217
	Maker reference	AP8163346

AP8163346 - SPESSORE 21X8.1X0.2

	P2R reference	52219
	Maker reference	AP8163356

AP8163356 - PISTONE SX D.26

	P2R reference	52216
	Maker reference	AP8163345

AP8163345 - SPESSORE 23X8.1X0.3

	P2R reference	52218
	Maker reference	AP8163352

AP8163352 - DADO M6 H=11 FE CH.12

	P2R reference
	Maker reference	AP8163337

Tige complete gauche

	P2R reference
	Maker reference	AP8163347

Flasque izq.

	P2R reference	52223
	Maker reference	AP8163364

AP8163364 - TAPPO SX

	P2R reference	52179
	Maker reference	AP8163241

AP8163241 - STELO DX FORCELLA

	P2R reference	52180
	Maker reference	AP8163242

AP8163242 - STELO SX FORCELLA
