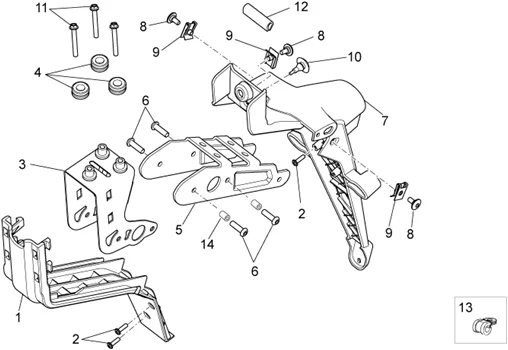

Vehicle Exploded View - APRILIA DORSODURO 750 Factory-ABS 2010-2013 APRILIA

Chassis : 28.17 CARROSSERIE POSTERIEURE III
Carrosserie posterieure III
Search
849955 - FERMETURE TABL. BORD

1
P2R reference P2R reference 39107
Maker reference Maker reference 849955

849955 - FERMETURE TABL. BORD

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

2
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

More information

Quantity required : 3
856680 - CHASSIS PORTE-PLAQUE

3
P2R reference P2R reference 40144
Maker reference Maker reference 856680

856680 - CHASSIS PORTE-PLAQUE

More information

Quantity required : 1
AP8120030 - CAOUTCHOUC

4
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

AP8120030 - CAOUTCHOUC

More information

Quantity required : 3
859697 - SUPPORT PLAQUE IM.

5
P2R reference P2R reference 40659
Maker reference Maker reference 859697

859697 - SUPPORT PLAQUE IM.

More information

Quantity required : 1
AP8224470 - VIS

6
P2R reference P2R reference 72330
Maker reference Maker reference AP8224470

AP8224470 - VIS

More information

Quantity required : 4
856827 - PORTE-PLAQUE

7
P2R reference P2R reference 40228
Maker reference Maker reference 856827

856827 - PORTE-PLAQUE

More information

Quantity required : 1
SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

8
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

More information

Quantity required : 3
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

9
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 3
AP8120001 - CAOUTCHOUC

10
P2R reference P2R reference 71383
Maker reference Maker reference AP8120001

AP8120001 - CAOUTCHOUC

More information

Quantity required : 2
SCREW - FLANGE -AP8152284-

11
P2R reference P2R reference 71946
Maker reference Maker reference AP8152284

SCREW - FLANGE -AP8152284-

More information

Quantity required : 3
AP8144707 - GUARNIZIONE TELAIO

12
P2R reference P2R reference 71779
Maker reference Maker reference AP8144707

AP8144707 - GUARNIZIONE TELAIO

More information

Quantity required : 1
AP8134167 - PLAQUETTE TUYAU FREIN;

13
P2R reference P2R reference 71695
Maker reference Maker reference AP8134167

AP8134167 - PLAQUETTE TUYAU FREIN;

More information

Quantity required : 2
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544-

14
P2R reference P2R reference 70868
Maker reference Maker reference 896544

FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544-

More information

Quantity required : 2
