Vehicle Exploded View - APRILIA DORSODURO 750 Factory-ABS 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

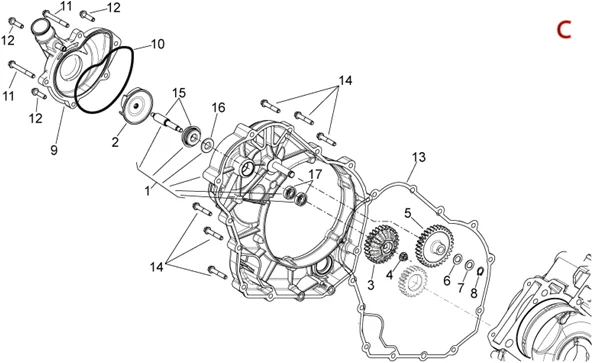

Moteur : 29.50 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/291/Dorsoduro_750_Factory-ABS_2010-2013_29.50.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/0/3/img/41303.jpg)
1 |
CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO, SHIVER - 871657 - More informationQuantity required : 1 |
||||||
1 |
8783955 - COUVERCLE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
2 |
880646 - ROUE POMPE EAU More informationQuantity required : 1 |
||||||
|
2 |
878734 - RONDELLE More informationQuantity required : 1 |
||||||
|
3 |
876529 - ECROU More informationQuantity required : 1 |
||||||
|
3 |
871180 - ENGRANAGE More informationQuantity required : 1 |
||||||
|
4 |
8807965 - SUPPORT More informationQuantity required : 1 |
||||||
|
4 |
872816 - ECROU More informationQuantity required : 1 |
||||||
|
4 |
B0142605 - SUPPORT More informationQuantity required : 1 |
||||||
|
5 |
8751945 - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/9/6/img/41496.jpg)
5 |
878115 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/6/1/img/41461.jpg)
6 |
876538 - BAGUE More informationQuantity required : 1 |
||||||
|
6 |
848280 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
873473 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/9/img/111629.jpg)
7 |
O'RING GASKET - FOR WATER PUMP OR GEARBOX "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO APE -224035- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/0/img/63810.jpg)
8 |
CIRCLIP FOR DRIVE PULLEY "PIAGGIO GENUINE PART" PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 -006410- More informationQuantity required : 1 |
||||||
|
8 |
846624 - CHA?NE More informationQuantity required : 1 |
||||||
|
9 |
B0130685 - COUVERCLE POMPE EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/9/7/2/img/61972.JPG)
10 |
B013527 - JOINT CORPS POMPE EAU More informationQuantity required : 1 |
||||||
|
11 |
877850 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/3/img/70533.jpg)
11 |
SCREW - (M6X100X55) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA -874552- More informationQuantity required : 2 |
||||||
|
12 |
874549 - VIS BRIDE More informationQuantity required : 3 |
||||||
|
12 |
871094 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/1/1/img/41411.jpg)
13 |
874619 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/7/5/img/41475.jpg)
13 |
GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO -877069- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
14 |
874550 - VIS More informationQuantity required : 13 |
||||||
|
15 |
8734975 - ARBRE POMPE A EAU More informationQuantity required : 1 |
||||||
|
15 |
880646 - ROUE POMPE EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/2/9/3/img/41293.jpg)
16 |
871258 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
16 |
875814 - COURONNE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
17 |
834951 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
17 |
871255 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
18 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
19 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
20 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202- More informationQuantity required : 1 |
||||||
|
21 |
B013345 - PATIN More informationQuantity required : 1 |
||||||
|
22 |
8807955 - SUPP. POMPE More informationQuantity required : 1 |
||||||
|
22 |
B0142585 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
23 |
436695 - CONE ELASTIQUE 6X20 More informationQuantity required : 1 |
