Vehicle Exploded View - APRILIA DORSODURO 750 Factory-ABS 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

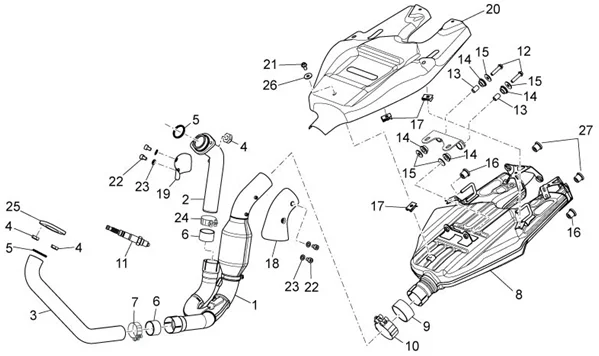

Chassis : 28.25 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/291/Dorsoduro_750_Factory-ABS_2010-2013_28.25.PNG)
1 |
85202R - COLLECTEUR ECHAP.CENTRAL More informationQuantity required : 1 |
||||||
|
2 |
860437 - COLLECTEUR More informationQuantity required : 1 |
||||||
|
3 |
851590 - COLLECTEUR More informationQuantity required : 1 |
||||||
|
3 |
856798 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.JPG)
4 |
2B004511 - ECROU More informationQuantity required : 4 |
||||||
|
4 |
2B004511 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/2/4/img/69624.jpg)
5 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 850 SRV/GILERA 800 GP -851582- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/1/img/73431.jpg)
6 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 850-1200 BREVA, NORGE, 940 BELLAGIO -GU05121630- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/3/img/73433.JPG)
7 |
GU05123431 - COLLIER GAUCHE More informationQuantity required : 1 |
||||||
|
8 |
856799 - SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/6/img/73436.jpg)
9 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO -GU05128230- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/3/9/img/39139.JPG)
10 |
851586 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/6/img/70836.jpg)
11 |
LAMBDA SENSOR "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, V7, NEVADA, 850 V9, 1200 STELVIO, DORSODURO, CAPONORD -896110- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
12 |
AP8152289 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/5/img/71465.jpg)
13 |
AP8121455 - DOUILLE ENTRETOISE; More informationQuantity required : 2 |
||||||
|
14 |
856914 - CAOUTCHOUC SUPPORT POT D'ECHAPPEMENT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
15 |
AP8150018 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/5/5/0/img/39550.jpg)
16 |
852433 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 5 |
||||||
|
18 |
860397 - PROTECTION More informationQuantity required : 1 |
||||||
|
19 |
856859 - PROTECTION AMORTISSEUR More informationQuantity required : 1 |
||||||
|
20 |
856854 - PROTECTION PARE-CHALEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
21 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
22 |
AP8150505 - VITE TCEI M4X6 INOX More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/1/img/71901.JPG)
23 |
AP8150535 - ROSETTA VENTAGLIO INT.A2 - M4 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/2/img/73432.JPG)
24 |
GU05123430 - COLLIER DROIT More informationQuantity required : 1 |
||||||
|
25 |
858294 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
26 |
AP8150179 - RONDELLE More informationQuantity required : 1 |
||||||
|
27 |
860171 - CAOUTCHOUC More informationQuantity required : 1 |
