Vehicle Exploded View - APRILIA DORSODURO 750 Factory-ABS 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

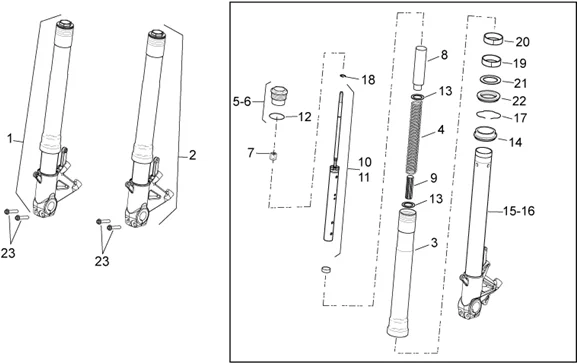

Chassis : 28.07 FOURCHE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/291/Dorsoduro_750_Factory-ABS_2010-2013_28.07.PNG)
1 |
896007 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
2 |
896008 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
897328 - FOURREAU More informationQuantity required : 2 |
||||||
|
4 |
897329 - RESSORT More informationQuantity required : 2 |
||||||
|
5 |
897330 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
|
6 |
897348 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
|
7 |
897331 - ECROU More informationQuantity required : 2 |
||||||
|
8 |
897332 - TUYAU PRECHARGE More informationQuantity required : 2 |
||||||
|
9 |
897333 - GUIDE RES. More informationQuantity required : 2 |
||||||
|
10 |
897334 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
|
11 |
897349 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
|
12 |
897335 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
13 |
897336 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/1/img/42721.jpg)
14 |
FORK DUST COVER - "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897337- More informationQuantity required : 2 |
||||||
|
15 |
897338 - TIGE More informationQuantity required : 1 |
||||||
|
16 |
897350 - TIGE More informationQuantity required : 1 |
||||||
|
17 |
897339 - BAGUE More informationQuantity required : 2 |
||||||
|
18 |
897340 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/5/img/42725.JPG)
19 |
897341 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/6/img/42726.JPG)
20 |
897342 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
21 |
897343 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/8/img/42728.jpg)
22 |
FORK OIL SEAL "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897344- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
23 |
AP8152283 - VIS BRIDE More informationQuantity required : 4 |
