Vehicle Exploded View - APRILIA DORSODURO 750 Factory-ABS 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

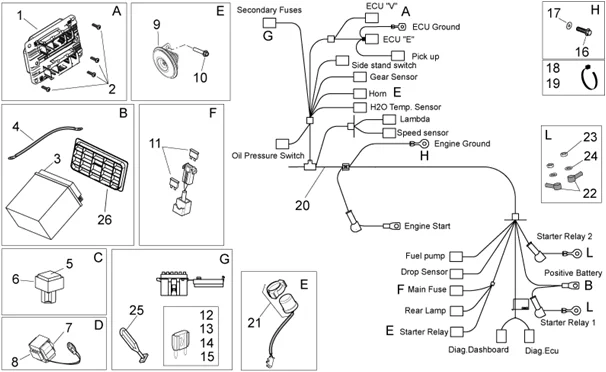

Chassis : 28.33 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/291/Dorsoduro_750_Factory-ABS_2010-2013_28.33.PNG)
1 |
641226 - CENTRALE ELECTRONIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
2 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 4 |
||||||
|
3 |
583158 - BATTERIE 12V/12A YUASA YTX12-BS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/7/img/67807.jpg)
3 |
BATTERY 12V 12 AH YTX14-BS YUASA - MAINTENANCE FREE+ ACID PACK "PIAGGIO GENUINE PART" -638733- More informationQuantity required : 1 |
||||||
|
4 |
859967 - CABLAGE MASSE-BATTERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
5 |
INJECTION RELAY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -895481- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
6 |
AP8220546 - CAOUTCHOUC SUPPORT RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.JPG)
7 |
584509 - SENSOR DE CHUTE More informationQuantity required : 1 |
||||||
|
8 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
|
9 |
854830 - AVERTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
10 |
AP8152280 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
11 |
496404 - FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
12 |
292507 - FUSIBLE 10A More informationQuantity required : 3 |
||||||
|
13 |
977772 - FUSIBLE 15A More informationQuantity required : 3 |
||||||
|
14 |
AP8176100 - FUSIBILE 20A More informationQuantity required : 2 |
||||||
|
15 |
AP8127346 - FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
16 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
17 |
658830 - RONDELLE More informationQuantity required : 1 |
||||||
|
18 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.JPG)
19 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
|
20 |
896741 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
20 |
898072 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/0/img/71280.jpg)
21 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, CAPONORD, 650 PEGASSO, 125-250-500 ATLANTIC, SCARABEO -AP81129275- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/0/img/67200.JPG)
22 |
581061 - CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
23 |
AP8150026 - ECROU More informationQuantity required : 2 |
||||||
|
24 |
658830 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.JPG)
25 |
AP8120177 - ELASTIQUE SUPPORT FEU More informationQuantity required : 1 |
||||||
|
26 |
654139 - BASE BATTERIE More informationQuantity required : 1 |
