Vehicle Exploded View - APRILIA DORSODURO 750 Factory-ABS 2010-2013 APRILIA

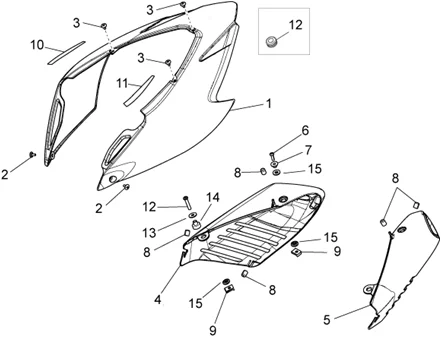

Chassis : 28.16 CARROSSERIE POSTERIEURE II
Carrosserie posterieure II
Search
89782400XN6 - QUEUE, NOIR

1
P2R reference P2R reference 42824
Maker reference Maker reference 89782400XN6

89782400XN6 - QUEUE, NOIR

More information

Quantity required : 1
SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

2
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

More information

Quantity required : 3
AP8150509 - VIS TARAUD 5X14

3
P2R reference P2R reference 71897
Maker reference Maker reference AP8150509

AP8150509 - VIS TARAUD 5X14

More information

Quantity required : 3
SILENCER PROTECTION (RIGHT) "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO BLACK -85680000XN6-

4
P2R reference P2R reference 40194
Maker reference Maker reference 85680000XN6

SILENCER PROTECTION (RIGHT) "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO BLACK -85680000XN6-

More information

Quantity required : 1
SILENCER PROTECTION (LEFT) "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO BLACK -85680100XN6-

5
P2R reference P2R reference 40196
Maker reference Maker reference 85680100XN6

SILENCER PROTECTION (LEFT) "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO BLACK -85680100XN6-

More information

Quantity required : 1
AP8224470 - VIS

6
P2R reference P2R reference 72330
Maker reference Maker reference AP8224470

AP8224470 - VIS

More information

Quantity required : 4
AP8221341 - "DOUILLE EN ""T"""

7
P2R reference P2R reference 57074
Maker reference Maker reference AP8221341

AP8221341 - "DOUILLE EN ""T"""

More information

Quantity required : 4
RUBBER SPACER FOR FUEL CAP "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2018> -AP8120712-

8
P2R reference P2R reference 71414
Maker reference Maker reference AP8120712

RUBBER SPACER FOR FUEL CAP "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2018> -AP8120712-

More information

Quantity required : 6
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

9
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 5
860931 - DECALCO

10
P2R reference P2R reference 41113
Maker reference Maker reference 860931

860931 - DECALCO

More information

Quantity required : 1
860932 - DECALCO

11
P2R reference P2R reference 41114
Maker reference Maker reference 860932

860932 - DECALCO

More information

Quantity required : 1
AP8152128 - VIS

12
P2R reference P2R reference 50956
Maker reference Maker reference AP8152128

AP8152128 - VIS

More information

Quantity required : 2
AP8150179 - RONDELLE

13
P2R reference P2R reference 71834
Maker reference Maker reference AP8150179

AP8150179 - RONDELLE

More information

Quantity required : 2
860331 - DOUILLE EN "T"

14
P2R reference P2R reference 40856
Maker reference Maker reference 860331

860331 - DOUILLE EN "T"

More information

Quantity required : 2
AP8221340 - "DOUILLE EN ""T"""

15
P2R reference P2R reference 57073
Maker reference Maker reference AP8221340

AP8221340 - "DOUILLE EN ""T"""

More information

Quantity required : 4
