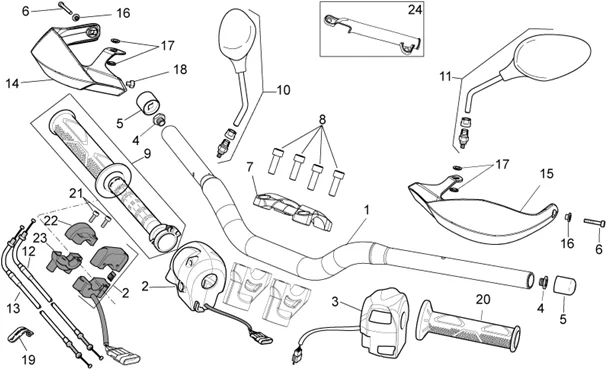

Vehicle Exploded View - APRILIA DORSODURO 750 Factory-ABS 2010-2013

	P2R reference	40248
	Maker reference	856902

HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008>2011- -856902-

	P2R reference	42287
	Maker reference	895220

895220 - GUIDON

	P2R reference	108995
	Maker reference	B045066

B045066 - DEVIATEUR FEUX DTE

	P2R reference	70747
	Maker reference	883542

883542 - DISPOSITIF

	P2R reference	42435
	Maker reference	896107

LIGHTS SWITCH - LEFT "PIAGGIO GENUINE PART" APRILIA 750-900 DORSODURO, SHIVER, 1200 DORSODURO, CAPONORD -896107-

	P2R reference	71471
	Maker reference	AP8121520

AP8121520 - TERM.POIDS ANTIVIB.

	P2R reference	40729
	Maker reference	859949

BAR ENDS (WEIGHTS) "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD, 750-900 DORSODURO -859949-

	P2R reference	71859
	Maker reference	AP8150324

SCREW - FOR BAR ENDS"PIAGGIO GENUINE PARTS" COMMON TO ALL THE RANGE APRILIA MOTORBIKES -AP8150324

	P2R reference	71933
	Maker reference	AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246-

	P2R reference	39160
	Maker reference	851628

HANDLEBAR HALF CLAMP (UPPER) "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO -851628

	P2R reference	51040
	Maker reference	AP8152486

AP8152486 - VITE TCC M8X25 INOX

	P2R reference	73415
	Maker reference	GU01603480

THROTTLE HANDLE+ HAND GRIPS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU01603480-

	P2R reference	42566
	Maker reference	896663

MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, 1000-1100 TUONO, V85, 1200 CAPONORD -896663-

	P2R reference	71242
	Maker reference	AP8104921

MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -AP8104921

	P2R reference	40504
	Maker reference	858539

MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, 1000-1100 TUONO, V85, 1200 CAPONORD -858539-

	P2R reference	71243
	Maker reference	AP8104922

MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -AP8104922-

	P2R reference	40203
	Maker reference	856811

856811 - CABLE OUVERTURE GAZ

	P2R reference	42899
	Maker reference	898078

898078 - CABLE OUVERTURE GAZ

	P2R reference	40204
	Maker reference	856812

856812 - CABLE FERMETURE GAZ

	P2R reference	42900
	Maker reference	898079

898079 - CABLE FERMETURE GAZ

	P2R reference	40236
	Maker reference	856855

RIGHT HAND GUARD - "PIAGGIO GENUINE PART" APRILIA 750-900 DORSODURO -856855-

	P2R reference	42243
	Maker reference	894880

894880 - PROT-MAIN DROITE

	P2R reference	156930
	Maker reference	2B005927

LEFT HAND GUARD - "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008>2016, 900 DORSODURO 2017> -2B005927-

	P2R reference	156930
	Maker reference	856856

LEFT HAND GUARD - "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008>2016, 900 DORSODURO 2017> -2B005927-

	P2R reference	42244
	Maker reference	894881

894881 - PROT-MAIN GAUCHE

	P2R reference	71488
	Maker reference	AP8121811

AP8121811 - "DOUILLE EN ""T"""

	P2R reference	46722
	Maker reference	AP8121080

SPACER- FOR STAND "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 50 SX, RX, 750-900 DORSODURO -AP8121080

	P2R reference	71746
	Maker reference	AP8144081

RUBBER SPACER "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA/MOTO-GUZZI MOTORBIKES -AP8144081

	P2R reference	41051
	Maker reference	860744

860744 - COLLIER EL.

	P2R reference	71366
	Maker reference	AP8118579

HAND GRIP "PIAGGIO GENUINE PARTS" AP8118579

	P2R reference	71361
	Maker reference	AP8118492

AP8118492 - VIS CALOTTE;

	P2R reference	71365
	Maker reference	AP8118567

AP8118567 - CAVALIER AR. COMMANDE GAZ;

	P2R reference	71364
	Maker reference	AP8118566

AP8118566 - CAVALIER AV. COMMANDE GAZ;

	P2R reference	42320
	Maker reference	895349

895349 - PROTECTION TUBE FREIN
