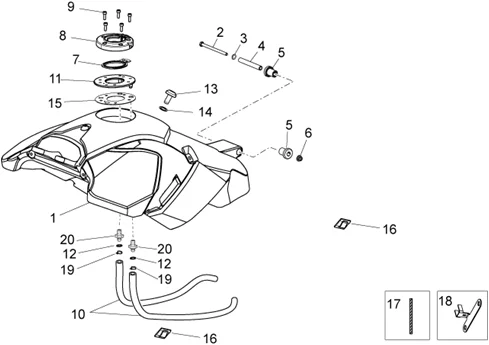

Chassis : 28.12 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/291/Dorsoduro_750_Factory-ABS_2010-2013_28.12.PNG)
1 |
894921 - RESERVOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8150459 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.JPG)
3 |
AP8150014 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
AP8134419 - DOUILLE ATTACHE RESERVOIR; More informationQuantity required : 1 |
||||||
|
5 |
AP8123934 - CAOUTCHOUC; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
6 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
7 |
856846 - JOINT More informationQuantity required : 1 |
||||||
|
8 |
860237 - TUYAU DE RACCORD RESERVOIR More informationQuantity required : 1 |
||||||
|
9 |
AP8150454 - VIS More informationQuantity required : 5 |
||||||
|
10 |
AP8220402 - TUYAU More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
10 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 2 |
||||||
|
11 |
860236 - FLASQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
12 |
O'RING GASKET FOR FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120965- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/2/0/1/6/img/52016.jpg)
13 |
FUEL TANK FASTENING SCREW "PIAGGIO GENUINE PARTS" APRILIA 1000-1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD -AP8161127- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
14 |
AP8150255 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
890195 - JOINT More informationQuantity required : 1 |
||||||
|
16 |
AP8120581 - SUPPORT GAINE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/9/2/5/img/40925.JPG)
17 |
860447 - BIADHESIF More informationQuantity required : 2 |
||||||
|
18 |
860986 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
19 |
AP8101595 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
20 |
2B001203 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 2 |
