Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

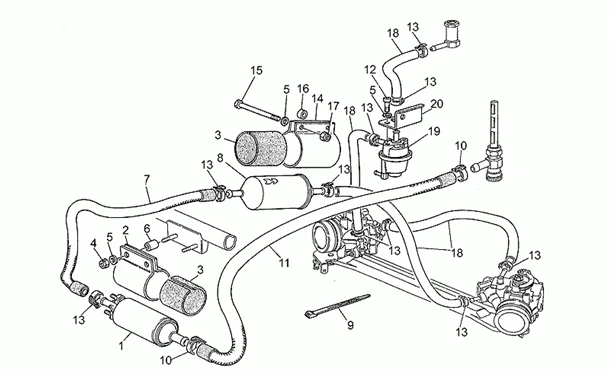

Chassis : 33.25 ALIMENTATION CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_33.25.PNG)
1 |
GU29107261 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
GU30107300 - COLLIER More informationQuantity required : 1 |
||||||
|
3 |
GU30105800 - COAUTCHOUC POUR SUPPORT More informationQuantity required : 2 |
||||||
|
4 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
5 |
AP8152105 - RONDELLE More informationQuantity required : 8 |
||||||
|
6 |
GU91180618 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
7 |
GU30106100 - TUYAN DE LA POMPE AU FILTRE More informationQuantity required : 1 |
||||||
|
8 |
GU30106000 - FILTRE ESSENCE More informationQuantity required : 1 |
||||||
|
9 |
GU30609600 - COLLIER 8,8X185 More informationQuantity required : 4 |
||||||
|
10 |
GU12157900 - COLLIER More informationQuantity required : 2 |
||||||
|
11 |
GU30106500 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
12 |
GU98622310 - VIS More informationQuantity required : 2 |
||||||
|
13 |
GU93305017 - COLLIER More informationQuantity required : 10 |
||||||
|
14 |
GU30113800 - COLLIER More informationQuantity required : 1 |
||||||
|
16 |
GU91180605 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
17 |
GU92630206 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
18 |
GU00823952080 - TUBO BENZINA SAE J30 R9 8X14 More informationQuantity required : 1 |
