Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

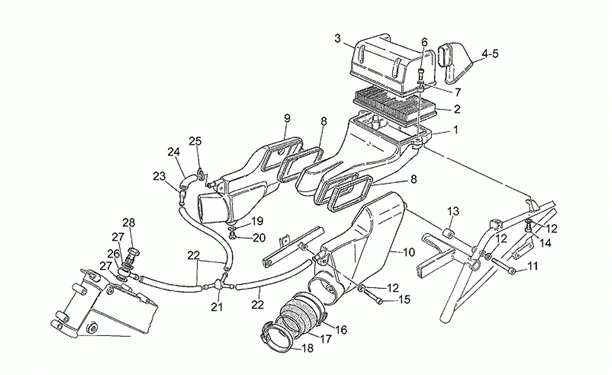

Chassis : 33.08 FILTRE AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_33.08.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/8/1/img/130581.jpg)
2 |
AIR FILTER "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO -GU30113600- More informationQuantity required : 1 |
||||||
6 |
GU98622320 - VIS More informationQuantity required : 2 |
||||||
|
7 |
GU95001206 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
12 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 6 |
||||||
|
14 |
GU98682312 - VIS TCEI M6X12 More informationQuantity required : 2 |
||||||
|
15 |
GU98610330 - VIS More informationQuantity required : 2 |
||||||
|
16 |
GU93305092 - COLLIER More informationQuantity required : 2 |
||||||
|
18 |
GU12548201 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
19 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200- More informationQuantity required : 2 |
||||||
|
20 |
GU98054412 - VIS More informationQuantity required : 2 |
||||||
|
21 |
GU29106860 - RACCORD 3 VOIES More informationQuantity required : 1 |
||||||
|
22 |
GU00823952080 - TUBO BENZINA SAE J30 R9 8X14 More informationQuantity required : 1 |
||||||
|
25 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 1 |
||||||
|
26 |
GU30107401 - RACCORD More informationQuantity required : 1 |
||||||
|
27 |
GU10154200 - JOINT More informationQuantity required : 2 |
||||||
|
28 |
GU95990084 - VIS PERCEE More informationQuantity required : 1 |
