Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

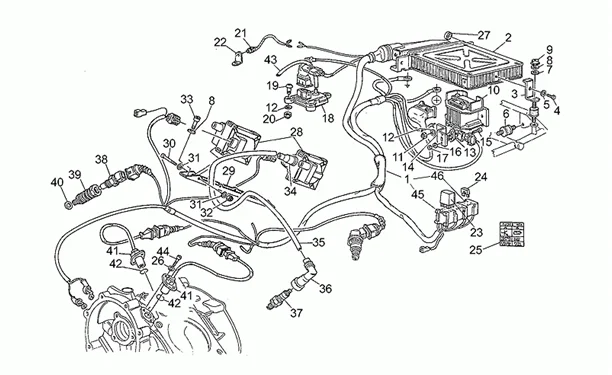

Chassis : 33.22 ALLUMAGE ÉLECTRONIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_33.22.PNG)
5 |
GU29217960 - RONDELLE 5,9X3X0,8 More informationQuantity required : 1 |
||||||
|
6 |
GU29737960 - BLOC More informationQuantity required : 5 |
||||||
|
7 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
8 |
AP8152105 - RONDELLE More informationQuantity required : 5 |
||||||
|
10 |
GU29724460 - MODULES DE PUISSANCE More informationQuantity required : 1 |
||||||
|
11 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
12 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.JPG)
13 |
GU30729330 - DETEC.TEMPER.AIR More informationQuantity required : 1 |
||||||
|
14 |
GU30728230 - SUPPORT DETECTEUR More informationQuantity required : 1 |
||||||
|
15 |
GU98610110 - VIS More informationQuantity required : 2 |
||||||
|
16 |
GU95120032 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
GU92601003 - ECROU More informationQuantity required : 2 |
||||||
|
18 |
GU29727061 - DETECTEUR PRESSION More informationQuantity required : 1 |
||||||
|
19 |
GU98230622 - VIS More informationQuantity required : 3 |
||||||
|
20 |
GU92630206 - ECROU M6X1 More informationQuantity required : 3 |
||||||
|
21 |
GU29727860 - TEMOIN COMPLET More informationQuantity required : 1 |
||||||
|
22 |
GU30732900 - PLAQUE SUPPORT More informationQuantity required : 1 |
||||||
|
23 |
GU30732560 - RELAIS SIEMENS A302/B1008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
24 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860- More informationQuantity required : 2 |
||||||
|
26 |
GU95004205 - RONDELLE More informationQuantity required : 6 |
||||||
|
27 |
GU29729762 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
28 |
IGNITION COIL "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA 1994>2004, 1200 GRISO 2007>2017, 750 V7 2008>2012, 1200 NORGE 2010>, 1200 SPORT 2008>2013, 1100 V11 1999>2005 -GU30716500- More informationQuantity required : 2 |
||||||
|
31 |
GU95004204 - RONDELLE More informationQuantity required : 8 |
||||||
|
32 |
GU92630104 - ECROU M4X0,7 More informationQuantity required : 4 |
||||||
|
33 |
GU98612316 - VIS M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
34 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
35 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350- More informationQuantity required : 2 |
||||||
|
37 |
GU30717002 - BOUGIE NGK DR9EA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
38 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 - More informationQuantity required : 1 |
||||||
|
40 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
42 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180- More informationQuantity required : 2 |
||||||
|
44 |
GU98622210 - VIS M5X10 More informationQuantity required : 4 |
||||||
|
45 |
GU30732400 - SUPPORT RELAIS More informationQuantity required : 2 |
||||||
|
46 |
GU30732200 - BOITE A FUSIBLES More informationQuantity required : 2 |
