Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

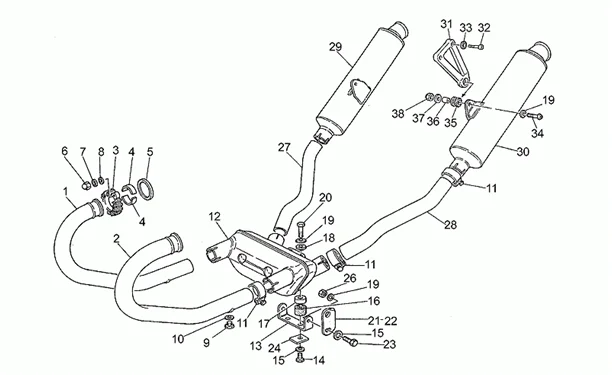

Chassis : 33.34 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_33.34.PNG)
2 |
GU30120901 - TUYAU ECHAPPEMENT GCHE More informationQuantity required : 1 |
||||||
|
4 |
GU30121200 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
5 |
GU90718406 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
6 |
GU92781081 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
7 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/8/img/132678.jpg)
8 |
GU95007208 - RONDELLE More informationQuantity required : 4 |
||||||
|
9 |
GU98110007 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.JPG)
10 |
GU30109330 - JOINT More informationQuantity required : 2 |
||||||
|
11 |
GU30123400 - COLLIER More informationQuantity required : 6 |
||||||
|
12 |
GU30123902 - CHAMBRE DE DETENDE More informationQuantity required : 1 |
||||||
|
14 |
GU98054412 - VIS More informationQuantity required : 2 |
||||||
|
15 |
GU95100256 - RONDELLE More informationQuantity required : 4 |
||||||
|
16 |
GU93233030 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
17 |
GU30126700 - ENTRETOISE INFERIEUR More informationQuantity required : 2 |
||||||
|
18 |
GU30126701 - ENTRETOISE SUPERIEUR More informationQuantity required : 2 |
||||||
|
19 |
GU95100239 - RONDELLE More informationQuantity required : 6 |
||||||
|
20 |
GU98054430 - VIS More informationQuantity required : 2 |
||||||
|
23 |
031117 - BOULON S03111700 More informationQuantity required : 2 |
||||||
|
24 |
GU95187008 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
26 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 2 |
||||||
|
27 |
GU30124700 - TUYAU D. More informationQuantity required : 1 |
||||||
|
28 |
GU30124800 - TUYAU G. More informationQuantity required : 1 |
||||||
|
29 |
GU30123001 - SILENCIEUX D More informationQuantity required : 1 |
||||||
|
30 |
GU30122901 - SILENCIEUX G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
32 |
GU98682316 - VIS M6X16 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
33 |
AP8152105 - RONDELLE More informationQuantity required : 4 |
||||||
|
34 |
GU98230835 - VIS M8X35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/6/img/129206.jpg)
35 |
GU14103400 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
37 |
GU95100256 - RONDELLE More informationQuantity required : 2 |
||||||
|
38 |
GU92630108 - ECROU More informationQuantity required : 2 |
