Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

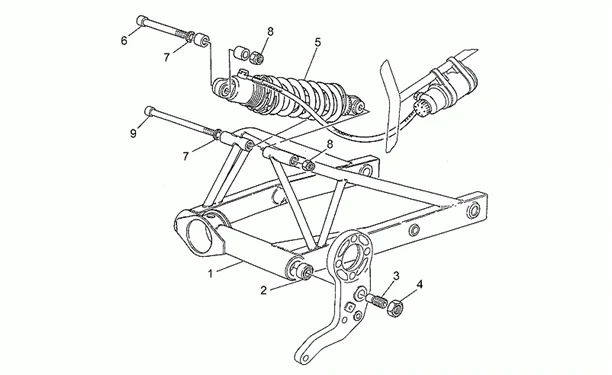

Chassis : 33.10 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_33.10.PNG)
2 |
GU92218418 - ROULEMENT A BILLES More informationQuantity required : 2 |
||||||
|
3 |
GU37547005 - PIVOT More informationQuantity required : 2 |
||||||
|
4 |
GU30547800 - ECROU More informationQuantity required : 2 |
||||||
|
6 |
GU98610690 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/5/4/img/130654.jpg)
7 |
GU30217900 - RONDELLE 13X18X1,7 More informationQuantity required : 2 |
||||||
|
8 |
GU92630111 - ECROU More informationQuantity required : 2 |
||||||
|
9 |
GU98680616 - VIS INFERIEURE More informationQuantity required : 1 |
