Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

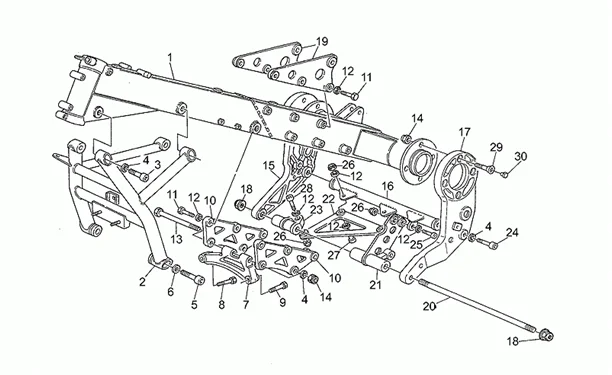

Chassis : 33.21 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_33.21.PNG)
2 |
GU30420200 - CADRE AVANT More informationQuantity required : 1 |
||||||
|
3 |
GU98610525 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
4 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 7 |
||||||
|
5 |
GU98612635 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/5/4/img/130654.jpg)
6 |
GU30217900 - RONDELLE 13X18X1,7 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
12 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 19 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
14 |
GU92630110 - ECROU M10X1,5 More informationQuantity required : 8 |
||||||
|
18 |
GU92660112 - TIRANT More informationQuantity required : 2 |
||||||
|
20 |
GU30419601 - VIS SANS TETE More informationQuantity required : 1 |
||||||
|
24 |
GU98610540 - VIS More informationQuantity required : 1 |
||||||
|
25 |
GU98612425 - VIS More informationQuantity required : 1 |
||||||
|
26 |
GU92630108 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
27 |
GU98622430 - VIS M8X30 More informationQuantity required : 2 |
||||||
|
28 |
AP8203590 - VIS More informationQuantity required : 1 |
||||||
|
30 |
GU30943400 - PETIT COUVERCLE More informationQuantity required : 8 |
