Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

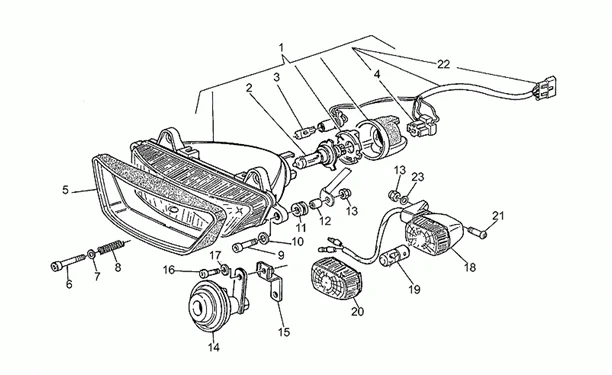

Chassis : 33.06 PHARE AVANT-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_33.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
2 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
3 |
294131 - AMPOULE 12V 3W More informationQuantity required : 1 |
||||||
4 |
GU14756255 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
6 |
GU98610335 - VIS TCEI M6X18 More informationQuantity required : 1 |
||||||
|
7 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
9 |
GU98622325 - VIS M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
10 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
|
11 |
GU91551082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
12 |
GU91180608 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
13 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
16 |
GU98612316 - VIS M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
17 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 1 |
||||||
|
18 |
GU30750601 - CLIGNOTANT ARRIERE GOUCHE More informationQuantity required : 1 |
||||||
|
19 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
20 |
GU30753701 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
|
21 |
GU98230620 - VIS More informationQuantity required : 2 |
||||||
|
22 |
GU17756160 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
23 |
GU95100123 - RONDELLE More informationQuantity required : 4 |
