Vehicle Exploded View - APRILIA AREA 51 50 1998-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

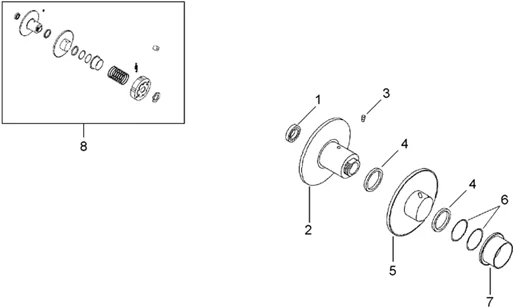

Moteur : 29.37 EMBRAGUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_29.37.PNG)
1 |
AP8206214 - JOINT SPI More informationQuantity required : 1 |
||||||
|
2 |
AP8206735 - POULIE SEC.FIXE More informationQuantity required : 1 |
||||||
|
3 |
AP8206741 - ROULEAU GUIDE-VARIATEUR More informationQuantity required : 2 |
||||||
|
4 |
AP8206743 - JOINT SPI More informationQuantity required : 2 |
||||||
|
5 |
AP8206736 - POULIE SEC.MOBILE More informationQuantity required : 1 |
||||||
|
6 |
AP8206740 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
7 |
AP8206737 - RONDELLE RESSORT VARIATEUR More informationQuantity required : 1 |
||||||
|
8 |
AP8206761 - VARIATEUR AVEC EMBRAYAGE More informationQuantity required : 1 |
