Vehicle Exploded View - APRILIA AREA 51 50 1998-2000 APRILIA

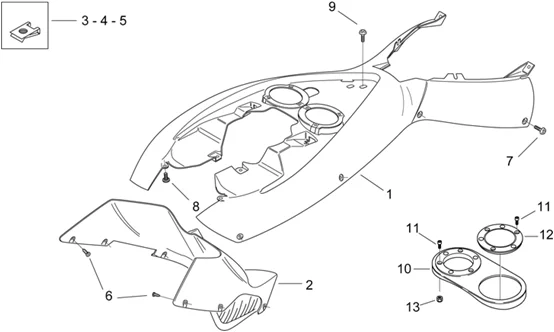

Chassis : 28.10 CARROSSERIE CENTRALE II
Carrosserie centrale ii
Search
AP8239159 - FERMETURE TUNN. SUP. BL.;

1
P2R reference P2R reference 58296
Maker reference Maker reference AP8239159

AP8239159 - FERMETURE TUNN. SUP. BL.;

More information

Quantity required : 1
AP8249357 - FERMETURE TUNN. SUP. NO.;

1
P2R reference P2R reference 58775
Maker reference Maker reference AP8249357

AP8249357 - FERMETURE TUNN. SUP. NO.;

More information

Quantity required : 1
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

3
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 7
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

4
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 4
AP8102381 - CLIP

5
P2R reference P2R reference 71177
Maker reference Maker reference AP8102381

AP8102381 - CLIP

More information

Quantity required : 3
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

6
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

More information

Quantity required : 7
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

7
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

More information

Quantity required : 8
SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

8
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

More information

Quantity required : 2
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8152338-

9
P2R reference P2R reference 71972
Maker reference Maker reference AP8152338

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8152338-

More information

Quantity required : 1
AP8150416 - VIS

11
P2R reference P2R reference 71877
Maker reference Maker reference AP8150416

AP8150416 - VIS

More information

Quantity required : 6
AP8150204 - ECROU AUTOFR. BAS

13
P2R reference P2R reference 71839
Maker reference Maker reference AP8150204

AP8150204 - ECROU AUTOFR. BAS

More information

Quantity required : 3
