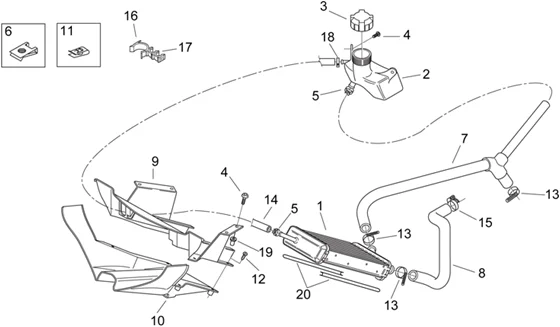

Vehicle Exploded View - APRILIA AREA 51 50 1998-2000 APRILIA

Chassis : 28.19 RADIATEUR
Radiateur
Search
AP8101912 - BOUCHON RADIATEUR SS RENIFLARD

3
P2R reference P2R reference 45116
Maker reference Maker reference AP8101912

AP8101912 - BOUCHON RADIATEUR SS RENIFLARD

More information

Quantity required : 1
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

4
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

More information

Quantity required : 6
AP8102765 - COLLIER CLIC, BLANC

5
P2R reference P2R reference 71198
Maker reference Maker reference AP8102765

AP8102765 - COLLIER CLIC, BLANC

More information

Quantity required : 2
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

6
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 5
AP8220521 - TUBE DE CULASSE RADIATEUR

8
P2R reference P2R reference 56914
Maker reference Maker reference AP8220521

AP8220521 - TUBE DE CULASSE RADIATEUR

More information

Quantity required : 1
AP8201763 - CLIP POUR VIS TARAUD

11
P2R reference P2R reference 72143
Maker reference Maker reference AP8201763

AP8201763 - CLIP POUR VIS TARAUD

More information

Quantity required : 2
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

12
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

More information

Quantity required : 6
AP8102732 - COLLIER

13
P2R reference P2R reference 45215
Maker reference Maker reference AP8102732

AP8102732 - COLLIER

More information

Quantity required : 3
AP8220450 - TUYAU A TEXTURE EN CAOUTCHOUC;

14
P2R reference P2R reference 56886
Maker reference Maker reference AP8220450

AP8220450 - TUYAU A TEXTURE EN CAOUTCHOUC;

More information

Quantity required : 1
AP8101573 - COLLIER

15
P2R reference P2R reference 71152
Maker reference Maker reference AP8101573

AP8101573 - COLLIER

More information

Quantity required : 1
AP8201807 - GUIDE-CABLE

16
P2R reference P2R reference 55392
Maker reference Maker reference AP8201807

AP8201807 - GUIDE-CABLE

More information

Quantity required : 1
AP8201808 - GUIDE-CABLE

17
P2R reference P2R reference 72146
Maker reference Maker reference AP8201808

AP8201808 - GUIDE-CABLE

More information

Quantity required : 2
AP8102349 - COLLIER CLIC, BLANC

18
P2R reference P2R reference 71172
Maker reference Maker reference AP8102349

AP8102349 - COLLIER CLIC, BLANC

More information

Quantity required : 1
AP8121075 - "DOUILLE EN ""T"""

19
P2R reference P2R reference 71432
Maker reference Maker reference AP8121075

AP8121075 - "DOUILLE EN ""T"""

More information

Quantity required : 2
890495 - JOINT CAOUT. EN U

20
P2R reference P2R reference 41717
Maker reference Maker reference 890495

890495 - JOINT CAOUT. EN U

More information

Quantity required : 2
