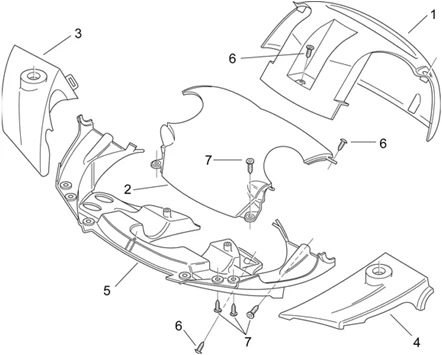

Vehicle Exploded View - APRILIA AREA 51 50 1998-2000 APRILIA

Chassis : 28.07 CARROSSERIE AV. I
Carrosserie av. i
Search
AP8248198 - CART. POMPE G, BL.CYBER;

4
P2R reference P2R reference 58542
Maker reference Maker reference AP8248198

AP8248198 - CART. POMPE G, BL.CYBER;

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

6
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

More information

Quantity required : 5
AP8150444 - VIS TARAUD POUR PLAST. INOX

7
P2R reference P2R reference 71887
Maker reference Maker reference AP8150444

AP8150444 - VIS TARAUD POUR PLAST. INOX

More information

Quantity required : 8
