Vehicle Exploded View - APRILIA AREA 51 50 1998-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

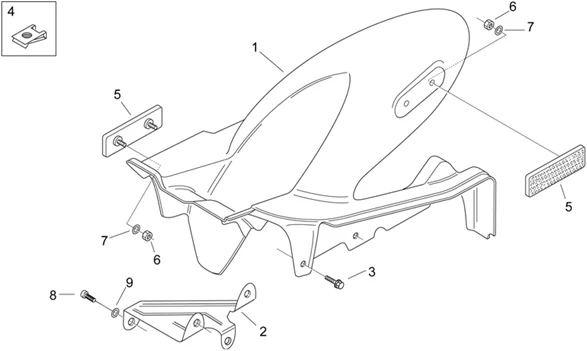

Chassis : 28.15 CARROSSERIE POSTERIEURE III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.15.PNG)
1 |
AP8226506 - GARDE-BOUE ARRIERE NYLON; More informationQuantity required : 1 |
||||||
|
1 |
AP8226587 - GARDE-BOUE ARRIERE NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8226588 - GARDE-BOUE ARRIERE NYLON, NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8234079 - SUPPORT G-BOUE AR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
3 |
AP8152273 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
||||||
|
5 |
AP8224023 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
6 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
7 |
AP8150158 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/2/img/50942.jpg)
8 |
AP8152040 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.JPG)
9 |
AP8150014 - RONDELLE More informationQuantity required : 1 |
