Vehicle Exploded View - APRILIA AREA 51 50 1998-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

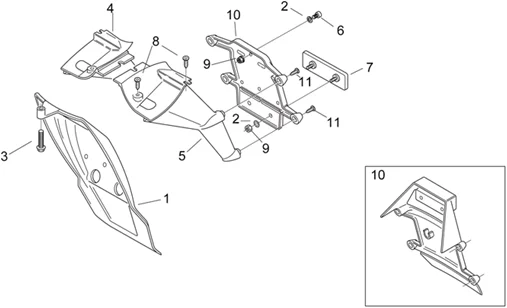

Chassis : 28.16 PORTE-PLAQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.16.PNG)
1 |
AP8226589 - RALL. PORTE-PLAQUE NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
2 |
AP8150158 - RONDELLE More informationQuantity required : 5 |
||||||
|
3 |
AP8152341 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
4 |
AP8226415 - PORTE-PLAQUE D. BLEU CLAIRE; More informationQuantity required : 1 |
||||||
|
5 |
AP8226463 - PORTE-PLAQUE G. BLEU CLAIRE; More informationQuantity required : 1 |
||||||
|
6 |
AP8150359 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.JPG)
7 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
8 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
9 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 5 |
||||||
|
10 |
AP8234159 - PORTE-PLAQUE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 4 |
