Vehicle Exploded View - APRILIA AREA 51 50 1998-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

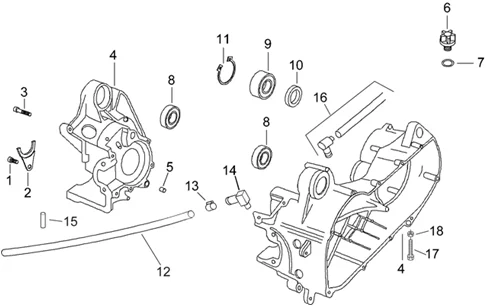

Moteur : 29.31 CARTERS CENTRAUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_29.31.PNG)
1 |
AP8206202 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/8/7/img/55687.jpg)
2 |
AP8206138 - PLAQUETTE FIXATION JOINT SPY More informationQuantity required : 1 |
||||||
|
3 |
AP8502567 - VIS More informationQuantity required : 5 |
||||||
|
5 |
AP8206169 - GOUPILLE CARTER More informationQuantity required : 2 |
||||||
|
6 |
AP8206475 - BOUCHON ALIMENTATION HUILE More informationQuantity required : 1 |
||||||
|
7 |
AP8206482 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
8 |
AP8206481 - ROULEMENT ETANCHE More informationQuantity required : 2 |
||||||
|
9 |
AP8206558 - ROULEMENT More informationQuantity required : 1 |
||||||
|
10 |
AP8206215 - JOINT SPI More informationQuantity required : 1 |
||||||
|
11 |
AP8501481 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 1 |
||||||
|
15 |
AP8206578 - ROULEAU More informationQuantity required : 1 |
||||||
|
16 |
AP8206131 - RACCORD+TUBE RENIF. More informationQuantity required : 1 |
||||||
|
17 |
AP8206203 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
18 |
AP8206488 - JOINT VIS More informationQuantity required : 1 |
