Vehicle Exploded View - APRILIA AREA 51 50 1998-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

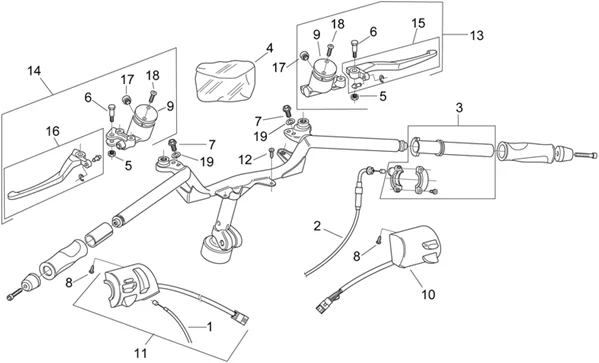

Chassis : 28.18 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/6/5/img/56565.jpg)
1 |
AP8214175 - CABLE STARTER; More informationQuantity required : 1 |
||||||
2 |
AP8214176 - CABLE GAZ; More informationQuantity required : 1 |
||||||
|
3 |
AP8218411 - COMMANDE GAZ SANS POIGNEE; More informationQuantity required : 1 |
||||||
|
5 |
AP8213298 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
6 |
AP8125757 - VIS LEVIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
7 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
8 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
|
10 |
AP8212914 - DEVIO DTE+CABL. More informationQuantity required : 1 |
||||||
|
11 |
AP8212915 - DEVIO GCHE+CABL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
12 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 2 |
||||||
|
14 |
AP8213294 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
15 |
AP8213402 - LEVIER FREIN AVANT More informationQuantity required : 1 |
||||||
|
16 |
AP8213398 - LEVIER DE FREIN AR More informationQuantity required : 1 |
||||||
|
17 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 2 |
||||||
|
18 |
AP8213400 - VIS COUVERCLE POMPE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
19 |
AP8150179 - RONDELLE More informationQuantity required : 2 |
