Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

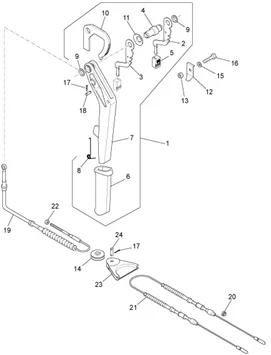

Transmisisons : 05.07 FREIN DE STATIONNEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_05.07.PNG)
1 |
614737 - GROUPE LEVIERS More informationQuantity required : 1 |
||||||
|
2 |
189748 - LEVIER More informationQuantity required : 1 |
||||||
|
3 |
614737 - GROUPE LEVIERS More informationQuantity required : 1 |
||||||
|
4 |
614737 - GROUPE LEVIERS More informationQuantity required : 1 |
||||||
|
5 |
614737 - GROUPE LEVIERS More informationQuantity required : 1 |
||||||
|
6 |
189746 - BOUTON More informationQuantity required : 1 |
||||||
|
7 |
614737 - GROUPE LEVIERS More informationQuantity required : 1 |
||||||
|
8 |
614737 - GROUPE LEVIERS More informationQuantity required : 1 |
||||||
|
9 |
125467 - RONDELLE More informationQuantity required : 2 |
||||||
|
10 |
614737 - GROUPE LEVIERS More informationQuantity required : 1 |
||||||
|
11 |
129622 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
13 |
020110 - ECROU More informationQuantity required : 1 |
||||||
|
14 |
061859 - POULIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
15 |
016410 - ANNEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/2/2/img/111322.jpg)
16 |
SCREW - HEX "PIAGGIO GENUINE PART" -030103- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/3/img/65353.JPG)
17 |
012761 - GOUPILLE S01276100 More informationQuantity required : 4 |
||||||
|
18 |
189751 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/9/1/2/img/115912.JPG)
19 |
567857 - TRANSMISSION FREIN A MAIN AVANT ATM-T1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/7/9/img/111279.jpg)
20 |
116232 - CUVETTE More informationQuantity required : 2 |
||||||
|
21 |
567858 - TRANSMISSION FREIN A MAIN ATM-T1 ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
22 |
020106 - ECROU S02010600 More informationQuantity required : 2 |
||||||
|
23 |
229700 - SEMICARRUCOLA More informationQuantity required : 1 |
||||||
|
24 |
061860 - AXE POULIE More informationQuantity required : 1 |
