Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

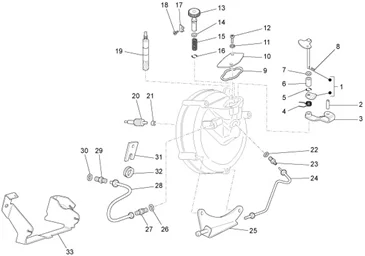

Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.18.PNG)
1 |
2212255 - GROUPE ARBRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/5/8/img/112058.jpg)
2 |
133516 - PIVOT More informationQuantity required : 1 |
||||||
|
3 |
1445244 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/9/3/img/111493.jpg)
4 |
199899 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/8/img/63828.jpg)
5 |
006705 - JOINT S00670500 More informationQuantity required : 1 |
||||||
|
6 |
217635 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/1/4/img/111214.jpg)
7 |
143315 - RONDELLE More informationQuantity required : 1 |
||||||
|
8 |
008806 - GOUPILLE S00880600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/1/6/img/110616.jpg)
9 |
144521 - JOINT More informationQuantity required : 1 |
||||||
|
10 |
144520 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
11 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.JPG)
12 |
1A003109 - VIS M5X16 More informationQuantity required : 2 |
||||||
|
13 |
2183355 - GROUPE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/6/img/66346.jpg)
14 |
400282 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/2/2/img/111522.jpg)
15 |
143328 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/0/img/63830.jpg)
16 |
006708 - JOINT S00670800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/4/img/65744.jpg)
17 |
146087 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/3/img/65743.jpg)
18 |
146086 - VIS More informationQuantity required : 1 |
||||||
|
19 |
143316 - ARBRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/4/6/1/img/120461.jpg)
20 |
221204 - ENGRENAGE CDE MEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/0/3/img/110503.jpg)
21 |
221203 - BAGUE More informationQuantity required : 1 |
||||||
|
23 |
220302 - VIS RACCORD More informationQuantity required : 1 |
||||||
|
24 |
220303 - TUYAU ADDUCTEUR More informationQuantity required : 1 |
||||||
|
25 |
2213004 - SUPPORT TUBE More informationQuantity required : 1 |
||||||
|
26 |
077713 - RONDELLE More informationQuantity required : 1 |
||||||
|
27 |
221140 - VIS RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/4/8/5/img/118485.jpg)
28 |
OIL PUMP PIPE "PIAGGIO GENUINE PART" APE TM703 -221142- More informationQuantity required : 1 |
||||||
|
29 |
2210535 - RACCORD CPLT More informationQuantity required : 1 |
||||||
|
30 |
166741 - JOINT More informationQuantity required : 1 |
||||||
|
32 |
016516 - PASSE CABLE More informationQuantity required : 1 |
||||||
|
33 |
221354 - BUTEE TRANS More informationQuantity required : 1 |
