Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

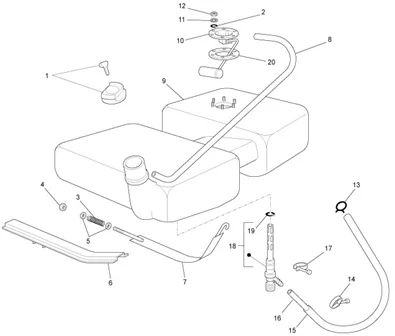

Parties plastiques-carrosseries : 02.47 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_02.47.PNG)
1 |
613726 - COUPLE POUSSOIRS More informationQuantity required : 1 |
||||||
|
2 |
012531 - RONDELLE S01253100 More informationQuantity required : 6 |
||||||
|
3 |
217254 - RESSORT More informationQuantity required : 1 |
||||||
|
4 |
002418 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.JPG)
5 |
002383 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
2174065 - BARRE RESERVOIR More informationQuantity required : 1 |
||||||
|
7 |
189317 - SANGLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/4/8/img/113248.JPG)
8 |
CM031701 - TUYAU More informationQuantity required : 1 |
||||||
|
9 |
247486 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
10 |
B004946 - JAUGE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
11 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
12 |
020104 - ECROU S02010400 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
13 |
CM002907 - COLLIER More informationQuantity required : 1 |
||||||
|
15 |
216327 - TUYAU More informationQuantity required : 1 |
||||||
|
16 |
1R000161 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
17 |
CM001905 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/8/0/img/116380.jpg)
18 |
FUEL TAP "PIAGGIO GENUINE PART" 50 APE -189320- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
19 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868- More informationQuantity required : 1 |
||||||
|
20 |
127152 - JOINT More informationQuantity required : 1 |
