Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

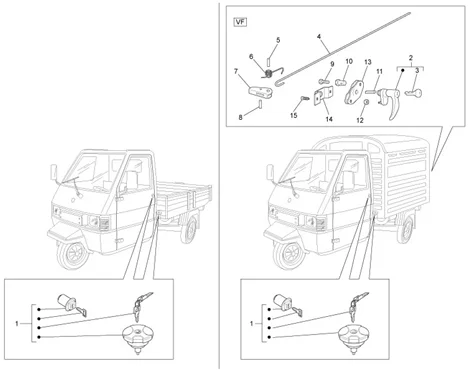

Parties plastiques-carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_02.46.PNG)
1 |
613726 - COUPLE POUSSOIRS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/3/8/img/118838.JPG)
2 |
HATCHBACK HANDLE (WITH LOCK) "PIAGGIO GENUINE PART" APE -257094- More informationQuantity required : 1 |
||||||
|
3 |
158831 - CLE EBAUCHE More informationQuantity required : 1 |
||||||
|
4 |
140090 - TIRANT More informationQuantity required : 2 |
||||||
|
5 |
008847 - AXE S00884700 More informationQuantity required : 2 |
||||||
|
6 |
141664 - RESSORT More informationQuantity required : 2 |
||||||
|
7 |
141663 - DOIGT More informationQuantity required : 2 |
||||||
|
8 |
141666 - PION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
9 |
031086 - VIS S03108600 More informationQuantity required : 2 |
||||||
|
10 |
115817 - EMBOUT More informationQuantity required : 2 |
||||||
|
11 |
217166 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
12 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457- More informationQuantity required : 1 |
||||||
|
13 |
141833 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
14 |
217165 - PONTET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
15 |
SCREW - -008432- More informationQuantity required : 2 |
