Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

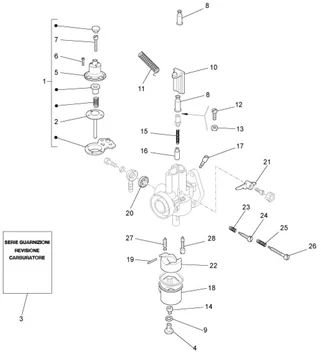

Moteur : 01.40 COMPOSANTS DE CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.40.PNG)
1 |
195776 - COUVERCLE GAZ More informationQuantity required : 1 |
||||||
|
2 |
195785 - MEMBRANE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/8/3/6/img/113836.jpg)
3 |
GASKET SET FOR CARB "PIAGGIO GENUINE PART" PIAGGIO APE TM703 -154793- More informationQuantity required : 1 |
||||||
|
4 |
493971 - BOUCHON More informationQuantity required : 1 |
||||||
|
5 |
195784 - COUVERCLE MEMBRANE More informationQuantity required : 1 |
||||||
|
7 |
195788 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/0/7/img/68507.jpg)
8 |
813174 - CACHE CARBU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/0/9/img/111609.jpg)
9 |
493972 - GARNITURE More informationQuantity required : 1 |
||||||
|
10 |
195764 - SOUPAPE GAZ More informationQuantity required : 1 |
||||||
|
11 |
093994 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
AP8222631 - VIS TENDEUR DE FIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/6/img/63766.JPG)
13 |
002613 - ECROU More informationQuantity required : 1 |
||||||
|
14 |
CM120804 - GICLEUR More informationQuantity required : 1 |
||||||
|
15 |
195543 - RESSORT More informationQuantity required : 1 |
||||||
|
16 |
195542 - SOUPAPE More informationQuantity required : 1 |
||||||
|
17 |
183062 - GIGLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/7/9/7/img/113797.jpg)
18 |
154783 - CUVE More informationQuantity required : 1 |
||||||
|
19 |
099316 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/9/img/65689.jpg)
20 |
FUEL FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50-125 MOTO APRILIA -099315- More informationQuantity required : 1 |
||||||
|
21 |
195772 - BALANCIER CDE GAZ More informationQuantity required : 1 |
||||||
|
22 |
099326 - FLOTTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
23 |
152608 - VIS More informationQuantity required : 1 |
||||||
|
24 |
195769 - VIS REGLAGE RALENTI More informationQuantity required : 1 |
||||||
|
25 |
094221 - RESSORT More informationQuantity required : 1 |
||||||
|
26 |
195770 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/7/0/img/114070.jpg)
27 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" APE TM703 -245955- More informationQuantity required : 1 |
||||||
|
28 |
151070 - GICLEUR More informationQuantity required : 1 |
