Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

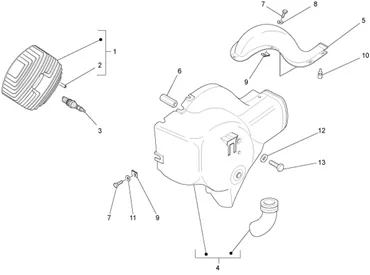

Moteur : 01.12 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.12.PNG)
1 |
2886712 - CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/7/6/img/113276.jpg)
3 |
SPARK PLUG CHAMPION RL78C "PIAGGIO GENUINE PART" 50-220 APE -438049- More informationQuantity required : 1 |
||||||
|
4 |
COOLER COVER "PIAGGIO GENUINE PART" APE TM 703 -231308- More informationQuantity required : 1 |
||||||
|
5 |
831944 - SCATOLA CHIUSU More informationQuantity required : 1 |
||||||
|
6 |
244998 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/2/7/img/110427.jpg)
7 |
008987 - VIS S00898700 More informationQuantity required : 8 |
||||||
|
8 |
013754 - RONDELLE S01375400 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/5/6/img/111156.JPG)
9 |
CM017414 - PLAQUETTE ELASTIQUE More informationQuantity required : 4 |
||||||
|
10 |
195700 - TAMPON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
11 |
078307 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/9/img/63839.JPG)
12 |
006968 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
13 |
031119 - BOULON More informationQuantity required : 1 |
