Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

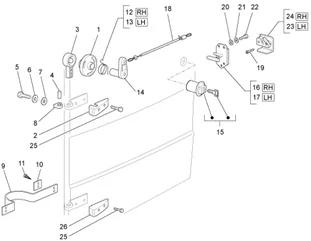

Parties plastiques-carrosseries : 02.07 COMPOSANTS DES PORTES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_02.07.PNG)
1 |
212708 - SUPPORT More informationQuantity required : 2 |
||||||
|
2 |
569578 - COPRICERNIERA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/6/1/img/113461.jpg)
3 |
DOOR HANDLE "PIAGGIO GENUINE PART" PIAGGIO APE TM703 -261449- More informationQuantity required : 2 |
||||||
|
4 |
017720 - GOUPILLE More informationQuantity required : 4 |
||||||
|
5 |
030079 - BOULON S03007900 More informationQuantity required : 4 |
||||||
|
6 |
414946 - RONDELLE PLATE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
7 |
012540 - RONDELLE More informationQuantity required : 4 |
||||||
|
8 |
212728 - BLOC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/8/4/img/111484.jpg)
9 |
212569 - SANGLE PORTE More informationQuantity required : 2 |
||||||
|
10 |
567605 - PLAQUETTE More informationQuantity required : 4 |
||||||
|
11 |
015952 - VIS More informationQuantity required : 8 |
||||||
|
12 |
212711 - RESSORT D More informationQuantity required : 1 |
||||||
|
13 |
212713 - RESSORT G More informationQuantity required : 1 |
||||||
|
14 |
212709 - LEVIER G-D More informationQuantity required : 2 |
||||||
|
15 |
613726 - COUPLE POUSSOIRS More informationQuantity required : 1 |
||||||
|
16 |
232419 - SERRURE DROITE More informationQuantity required : 1 |
||||||
|
17 |
232420 - SERRURE GAUCHE More informationQuantity required : 1 |
||||||
|
18 |
B007714 - TIRANT OUVRE PORTE More informationQuantity required : 2 |
||||||
|
19 |
008936 - VIS S00893600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
20 |
003056 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
21 |
012533 - RONDELLE More informationQuantity required : 6 |
||||||
|
22 |
018509 - VIS More informationQuantity required : 6 |
||||||
|
23 |
213181 - GACHE GAUCHE More informationQuantity required : 1 |
||||||
|
24 |
213182 - GACHE DROITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
25 |
018536 - VIS More informationQuantity required : 4 |
||||||
|
26 |
569577 - COPRICERNIERA More informationQuantity required : 2 |
