Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

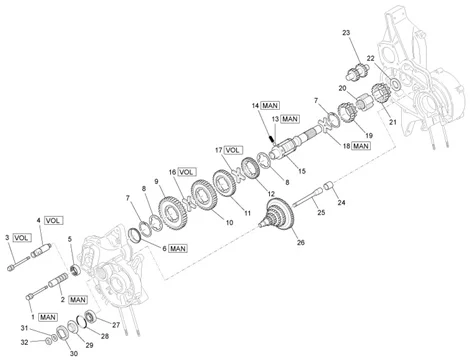

Moteur : 01.31 COMPOSANTS DE LA BOITE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.31.PNG)
3 |
849219 - TIGE More informationQuantity required : 1 |
||||||
|
4 |
8492204 - TIGE More informationQuantity required : 1 |
||||||
|
5 |
128635 - ROULEMENT More informationQuantity required : 1 |
||||||
|
6 |
169737 - BAGUE RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/3/img/63863.jpg)
7 |
009101 - CIRCLIPS S00910100 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/1/img/65761.JPG)
8 |
165415 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/2/img/65762.JPG)
8 |
165416 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/3/img/65763.JPG)
8 |
165417 - BAGUE More informationQuantity required : 1 |
||||||
|
8 |
165418 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/8/img/65738.jpg)
8 |
138393 - RONDELLE CN More informationQuantity required : 2 |
||||||
|
9 |
1697334 - ENGRENAGE 1 ERE VIT More informationQuantity required : 1 |
||||||
|
10 |
1697344 - ENGRENAGE 2 EME VIT More informationQuantity required : 1 |
||||||
|
11 |
1697354 - ENGRENAGE 3 EME VIT More informationQuantity required : 1 |
||||||
|
12 |
1697364 - ENGRENAGE 4 EME VIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/1/img/63761.jpg)
13 |
002139 - BILLE More informationQuantity required : 2 |
||||||
|
14 |
169738 - RESSORT More informationQuantity required : 2 |
||||||
|
15 |
8492275 - ARBRE More informationQuantity required : 1 |
||||||
|
16 |
2215686 - CROISILLON 1 & 2 221568 More informationQuantity required : 1 |
||||||
|
17 |
2215696 - CROISILLON VIT 3 4 More informationQuantity required : 1 |
||||||
|
19 |
2392294 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
20 |
2392324 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
21 |
2392304 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
22 |
129516 - RONDELLE More informationQuantity required : 1 |
||||||
|
22 |
239281 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
2392314 - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/8/6/8/img/112868.jpg)
24 |
090457 - CAGE A AIGUILLES More informationQuantity required : 1 |
||||||
|
25 |
1697284 - PIVOT ENG MULTIPLE More informationQuantity required : 1 |
||||||
|
26 |
1782254 - ENGRENAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/7/img/65627.jpg)
27 |
030209 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/2/6/img/112226.jpg)
28 |
180379 - JOINT More informationQuantity required : 1 |
||||||
|
29 |
159015 - GODET More informationQuantity required : 1 |
||||||
|
30 |
0787854 - DOUILLE More informationQuantity required : 1 |
||||||
|
31 |
078783 - RONDELLE More informationQuantity required : 1 |
||||||
|
32 |
015202 - ECROU S01520200 More informationQuantity required : 1 |
