Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

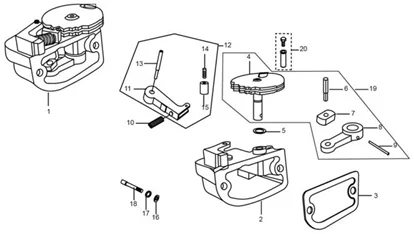

Moteur : 01.28 LEVIER DE LA BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_01.28.png)
1 |
1A001862 - SUPPORT BOITE A CHANGEMENT More informationQuantity required : 1 |
|||||||||
|
2 |
127641016 - SELECTEUR TIGE COMMANDE DE VITESSE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/9/7/img/112697.JPG)
3 |
128081017 - JOINT More informationQuantity required : 1 |
|||||||||
|
5 |
825080209 - O-RING More informationQuantity required : 1 |
|||||||||
|
10 |
126003011 - RESSORT More informationQuantity required : 1 |
|||||||||
|
11 |
126060019 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
12 |
126050014 - LEVIER More informationQuantity required : 1 |
|||||||||
|
13 |
126054010 - VIS More informationQuantity required : 1 |
|||||||||
|
14 |
126053016 - PIVOT More informationQuantity required : 1 |
|||||||||
|
15 |
126052012 - ROULEAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
16 |
003056 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
17 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
|||||||||
|
18 |
819064530 - VIS M6X45 More informationQuantity required : 2 |
|||||||||
|
19 |
127650017 - GROUPE SECTEUR - LEVIER - CONNECTEUR More informationQuantity required : 1 |
|||||||||
|
19 |
1A001468 - GROUPE SECTEUR - LEVIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/3/1/img/110131.jpg)
20 |
604560 - PERNO COLL.TIR More informationQuantity required : 2 |
|||||||||
