Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

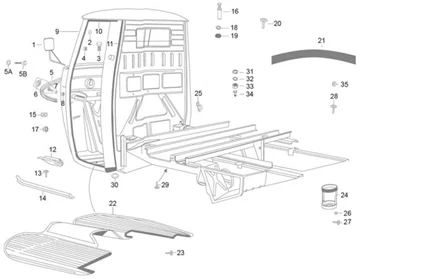

Châssis - parties plastiques - carrosseries : 02.13 COMPOSANTS DE LA CABINE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_02.13.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
2 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
3 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
4 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/7/8/img/109778.JPG)
5 |
190479 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
5 |
015911 - VIS S01591100 More informationQuantity required : 2 |
||||||
5 |
B024645 - BORDURE TOIT ARR More informationQuantity required : 1 |
||||||
|
6 |
190462 - PLAQUETTE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
7 |
003054 - RONDELLE S00305400 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
8 |
020104 - ECROU S02010400 More informationQuantity required : 5 |
||||||
|
9 |
632604 - JOINT More informationQuantity required : 1 |
||||||
|
10 |
193705 - JOINT More informationQuantity required : 2 |
||||||
|
11 |
193707 - More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
13 |
SCREW - -008432- More informationQuantity required : 6 |
||||||
|
14 |
661634 - BOUTON G. More informationQuantity required : 1 |
||||||
|
14 |
661635 - BOUTON D. More informationQuantity required : 1 |
||||||
|
15 |
B024855 - TERMINAL More informationQuantity required : 2 |
||||||
|
16 |
015911 - VIS S01591100 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
18 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861- More informationQuantity required : 2 |
||||||
|
19 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
604603 - RIVET More informationQuantity required : 8 |
||||||
|
21 |
587961 - ENCADREMENT More informationQuantity required : 1 |
||||||
|
22 |
587662 - TAPIS More informationQuantity required : 1 |
||||||
|
23 |
414948 - MACHOIRE (JEU) More informationQuantity required : 4 |
||||||
|
25 |
B024179 - CLE KIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
26 |
016405 - RONDELLE S01640500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/4/img/65634.jpg)
27 |
031058 - VIS S03105800 More informationQuantity required : 2 |
||||||
|
28 |
014628 - VIS S01462800 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
29 |
008455 - VIS More informationQuantity required : 1 |
||||||
|
30 |
003055 - RONDELLE More informationQuantity required : 1 |
||||||
|
31 |
016405 - RONDELLE S01640500 More informationQuantity required : 7 |
||||||
|
32 |
003055 - RONDELLE More informationQuantity required : 7 |
||||||
|
33 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/2/img/65612.jpg)
34 |
030072 - VIS S03007200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
35 |
020105 - ECROU S02010500 More informationQuantity required : 7 |
