Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

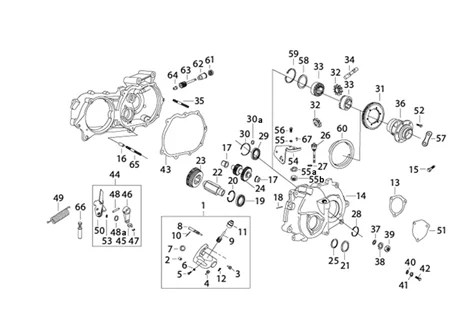

Moteur : 01.23 TRANSMISSION COMPLÈTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_01.23.png)
1 |
1A000817 - ENGR.COMP. More informationQuantity required : 1 |
||||||
|
2 |
124112014 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
125012015 - BOUCHON More informationQuantity required : 1 |
||||||
|
4 |
165121014 - PIVOT More informationQuantity required : 1 |
||||||
|
5 |
811051525 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
6 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
||||||
|
7 |
124106015 - COUVERCLE More informationQuantity required : 1 |
||||||
|
8 |
124121015 - PIGNON More informationQuantity required : 1 |
||||||
|
9 |
124102019 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
10 |
822031942 - GOUPILLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
11 |
124141015R - ADAPTATEUR More informationQuantity required : 1 |
||||||
|
12 |
124113018 - VIS More informationQuantity required : 1 |
||||||
|
13 |
165031013 - JOINT More informationQuantity required : 1 |
||||||
|
14 |
127112015 - COUVERCLE More informationQuantity required : 1 |
||||||
|
15 |
B003163 - VIS More informationQuantity required : 3 |
||||||
|
16 |
120203011 - GOUJON More informationQuantity required : 2 |
||||||
|
17 |
B042486 - MOYEU More informationQuantity required : 2 |
||||||
|
18 |
822051647 - GOUPILLE ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/0/6/img/114906.JPG)
19 |
880305509R - ROULEMENT More informationQuantity required : 1 |
||||||
|
20 |
841005207 - BAGUE More informationQuantity required : 1 |
||||||
|
20 |
841005506 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/7/4/3/img/115743.JPG)
21 |
888472671 - BAGUE ETANCHEITEE VM More informationQuantity required : 1 |
||||||
|
22 |
127503018 - ARBRE PIGNON More informationQuantity required : 1 |
||||||
|
23 |
227403011R - DESLIZAMIENTO DE ENGRANAJES More informationQuantity required : 1 |
||||||
|
24 |
227571014R - ENGRENAGE More informationQuantity required : 1 |
||||||
|
25 |
842003000 - ANNEAU More informationQuantity required : 1 |
||||||
|
25 |
842002501 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/8/5/6/img/112856.jpg)
26 |
112898 - BOUCHON JAUGE HUILE More informationQuantity required : 1 |
||||||
|
27 |
127016015 - JOINT BOUCHON HUILE More informationQuantity required : 1 |
||||||
|
28 |
006450 - CIRCLIPS S00645000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/4/7/img/119247.JPG)
29 |
007066 - ROULEMENT S00706600 More informationQuantity required : 1 |
||||||
|
30 |
111353 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
30 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
|
31 |
227555010 - COURONNE More informationQuantity required : 1 |
||||||
|
32 |
1651554 - PIGNON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/5/3/img/121953.JPG)
33 |
1321364 - PLANETAIRE More informationQuantity required : 2 |
||||||
|
34 |
132129 - PIVOT More informationQuantity required : 1 |
||||||
|
35 |
815084520 - GOUJON More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/0/img/151140.JPG)
36 |
288730 - BOITE DIFFERENTIEL More informationQuantity required : 1 |
||||||
|
37 |
808000826 - RONDELLE PLATE More informationQuantity required : 8 |
||||||
|
38 |
016406 - RONDELLE S01640600 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
39 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
40 |
003056 - RONDELLE More informationQuantity required : 3 |
||||||
|
41 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
42 |
031088 - VIS S03108800 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/9/6/img/112696.JPG)
43 |
127141016 - JOINT More informationQuantity required : 1 |
||||||
|
45 |
120321019 - LEVIER More informationQuantity required : 1 |
||||||
|
46 |
120322013 - LEVIER INVESTER More informationQuantity required : 1 |
||||||
|
47 |
843000500 - ANNEAU More informationQuantity required : 1 |
||||||
|
48 |
017702 - GOUPILLE ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/7/2/img/111872.JPG)
48 |
632191 - O-RING More informationQuantity required : 1 |
||||||
|
49 |
127111011 - RESSORT More informationQuantity required : 1 |
||||||
|
50 |
128060013 - SUPPORT More informationQuantity required : 1 |
||||||
|
51 |
B075002 - COUVERCLE More informationQuantity required : 1 |
||||||
|
52 |
B003163 - VIS More informationQuantity required : 6 |
||||||
|
53 |
825080209 - O-RING More informationQuantity required : 1 |
||||||
|
54 |
128306015 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
55 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
55 |
003054 - RONDELLE S00305400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
55 |
020104 - ECROU S02010400 More informationQuantity required : 2 |
||||||
|
56 |
031088 - VIS S03108800 More informationQuantity required : 2 |
||||||
|
57 |
B003155 - FIXATION More informationQuantity required : 3 |
||||||
|
58 |
220575 - RONDELLE More informationQuantity required : 1 |
||||||
|
59 |
132134 - BAGUE More informationQuantity required : 1 |
||||||
|
60 |
132244 - FIXATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/5/9/img/113259.jpg)
61 |
117402 - BAGUE More informationQuantity required : 1 |
||||||
|
62 |
117401 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/2/2/img/115322.jpg)
63 |
117404 - PIGNON COMPTEUR More informationQuantity required : 1 |
||||||
|
64 |
165121014 - PIVOT More informationQuantity required : 1 |
||||||
|
65 |
127103014 - PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/3/1/img/110131.jpg)
66 |
604560 - PERNO COLL.TIR More informationQuantity required : 1 |
||||||
|
67 |
119278 - EMBOUT More informationQuantity required : 1 |
