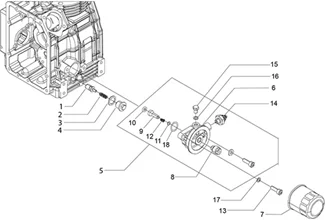

Moteur : 01.21 FILTRE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_01.21.png)
1 |
E5609680013 - VOLET DE GAZ More informationQuantity required : 1 |
||||||
|
2 |
E500575549 - RESSORT More informationQuantity required : 1 |
||||||
|
3 |
E200467021 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
E50000475 - BOUCHON More informationQuantity required : 1 |
||||||
|
5 |
E40001816 - FLANGE More informationQuantity required : 1 |
||||||
|
6 |
ED21235 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/9/img/114039.JPG)
7 |
ED42244 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
8 |
ED41208 - GOUJON More informationQuantity required : 1 |
||||||
|
9 |
E50006495029 - PISTON More informationQuantity required : 1 |
||||||
|
10 |
E50001213143 - JOINT More informationQuantity required : 1 |
||||||
|
11 |
E50005625006 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
E904120213 - O-RING More informationQuantity required : 1 |
||||||
|
13 |
E260973027 - BOUCHON More informationQuantity required : 2 |
||||||
|
14 |
ED41447 - CAPTEUR POUR HUILE More informationQuantity required : 1 |
||||||
|
15 |
E1177001 - VIS More informationQuantity required : 1 |
||||||
|
16 |
E200467003 - JOINT More informationQuantity required : 2 |
||||||
|
17 |
E50000613 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
E260120016 - O-RING More informationQuantity required : 1 |
